MRI findings for the pretreatment diagnosis of small Meckel’s cave tumors: comparison of meningiomas and schwannomas

BMC Medical Imaging volume 25, Article number: 57 (2025) Cite this article

Abstract

Background

Both meningiomas and schwannomas are the most common Meckel's cave (MC) tumors in terms of distinct imaging features. When they are small, they may present with similar imaging characteristics that make their diagnosis difficult. The aim of this study was to diagnose small meningiomas and schwannomas of the MC on the basis of their clinical and MRI findings.

Methods

The clinical data of 33 patients who were diagnosed with small MC tumors (SMCTs) (17 schwannomas, 16 meningiomas) between August 2002 and August 2023 were retrospectively evaluated. SMCTs were defined as MC tumors that were less than 3 cm in size. We analyzed their clinical and MRI findings, including demographic features, lesion morphologies and changes in adjacent structures.

Results

The rate of subtotal resection of meningiomas less than 3 cm in size was significantly lower than that of schwannomas less than 3 cm in size (43.8% vs. 100%, p = 0.032). The MRI features of meningiomas and schwannomas were as follows: 1) a prominent dura tail sign (8/16 [50%] vs. 0/17 [0%], p < 0.001); 2) few cystic components (0/16 [0%] vs. 9/17 [52.94%], p < 0.001); 3) lower minimum ADC (ADCmin) values (820.575 ± 302.545 [86.1–1144.4] vs. 1372.424 ± 561.337 [355.7–2616.6], p < 0.001); and 4) minimal ipsilateral masticatory muscle atrophy (-6.71% ± 22.43% [-85.71% ~ 13.79%] vs. 11.24% ± 11.98% [-14% ~ 38%], p < 0.001). Very small MC tumors (VSMCTs) were ≤ 2 cm in size, and the subgroup analysis of very small meningiomas and schwannomas revealed no differences in terms of ipsilateral masticatory muscle atrophy (p = 0.078), prominence of the dural tail (p = 0.236), or the presence of cystic components (p = 0. 364). However, the ADCmin values were significantly lower for very small meningiomas than for very small schwannomas (p = 0.009).

Conclusion

MRI features such as a prominent dural tail appearance, the presence of fewer cystic components, and less masticatory muscle atrophy may aid in differentiating meningiomas from schwannomas less than 3 cm in size. The ADC and DWI parameters provided additional critical insights, particularly for VSMCTs, thus facilitating preoperative diagnoses.

Peer Review reports

Background

Meckel's cave (MC) is a cisternal space situated at the base of the skull and houses the trigeminal nerve. Both meningiomas and schwannomas are tumors that most commonly develop in this space [1]. The pretreatment diagnosis of both tumors is not difficult if they are large and present with characteristic clinical and imaging features [2, 3]. Meningiomas usually appear as well-circumscribed and dura-based masses. They tend to have a characteristic dural tail appearance, which is characterized by the presence of enhancing tissue extending along the dura mater, appearing as a tail. Schwannomas usually present as well-circumscribed, enhancing masses. In some cases, schwannomas may contain cystic components or areas of necrosis.

The primary treatment for meningiomas and schwannomas of MC is surgical resection [4, 5]. To reduce the risk of clinical deficits, neurosurgeons aim to remove the tumor while preserving the integrity of the trigeminal nerve. In some cases where surgical resection is high risk or not possible, stereotactic radiosurgery, such as Gamma Knife or CyberKnife, can be performed to treat the tumors. However, the outcome of MC tumors varies greatly. Meningiomas have a 5-year recurrence rate of 13.1% [6], which is higher than that of schwannomas (7.4%) [7]. The higher rate of meningioma recurrence is due to difficulties associated with the total resection of the entire dural origin and hyperostotic bone [8]. The pretreatment diagnosis of both tumors is important for planning the most appropriate therapeutic approach and for predicting patient outcomes. Although some advanced imaging techniques (such as DWI or MR perfusion) are beneficial for distinguishing these tumors, the imaging features of these two tumors may be similar when they are small [9,10,11]. The presence of susceptibility artifacts could limit the clear visualization of these small tumors on images of the skull base. The aim of this retrospective study was to determine the pretreatment diagnosis of SMCTs, particularly small meningiomas and small schwannomas, on the basis of their MRI features to facilitate timely treatment planning and to improve outcomes.

Methods

Patients

Between August 2002 and August 2023, 55 patients were pathologically diagnosed with schwannomas in MC and 59 patients were pathologically diagnosed with meningiomas in MC at our institute (Fig. 1). We excluded patients with tumors larger than 3 cm and incomplete MR data and patients with significant susceptibility artifacts on the images of the skull base. A total of 33 patients with SMCTs, including 17 schwannomas and 16 meningiomas, were included in this study (Fig. 1). We reviewed the patients’ demographic data, surgical results, and outcomes (Supplementary Table 1 and Supplementary Table 2).

Fig. 1
figure 1

Patient flow diagram. We included 33 cases of small Meckel’s tumor in our study, including 16 meningiomas and 17 schwannomas. We excluded patients with significant susceptibility artifacts that could interfere with the accurate application and interpretation of DWI/ADC imaging parameters

Full size image

MRI

Conventional MR scans of the brain were performed using a 1.5 T clinical MR scanner (Siemens Medical Solutions; GE Medical Systems; or Philips Medical Systems). The protocol included axial T1/T2-weighted imaging; axial, sagittal and coronal contrast-enhanced fat-suppressed T1WI; diffusion-weighted imaging (DWI); and apparent diffusion coefficient (ADC) mapping.

We comprehensively analyzed the features of the tumors including the presence or absence of the dural tail sign [12, 13], presence or absence of the dumbbell shape [9, 10, 14], presence or absence of cystic components [15], and signal intensity within the solid components on axial T1-weighted imaging (T1WI), axial T2-weighted imaging (T2WI), and contrast-enhanced axial T1-weighted imaging [3]. A cystic component was defined as a well-demarcated, fluid-like area within the tumor, characterized by high T2-weighted signal intensity similar to cerebrospinal fluid, absence of restricted diffusion, and lack of enhancement after contrast administration. To determine the absolute minimum ADC values (referred to as the ADCmin), we used manually placed regions of interest (ROIs) with sizes ranging from 10 to 50 square millimeters [16]. This process was facilitated by the use of the hospital's picture archiving and communication system (PACS) workstations. We strategically positioned the tumor ROIs in areas with the lowest signals within the solid tumor components while ensuring that areas with necrosis, peritumoral edema, calcification, and hemorrhage were avoided [16]. Three distinct ROIs were situated on different sections and subsequently averaged. To account for variations in signal settings among different MRI scanners, we included an additional region of interest (ROI) that was placed in the corresponding region of the normal-appearing contralateral white matter on the medial side of the temporal lobe. The ADC ratio was the ratio between the solid tumor and the contralateral white matter [16,17,18]. Similarly, we determined DWI ratios (using a b value of 1000 s/mm2) by positioning the tumor ROIs in areas with the highest signals.

Differentiating small brain tumors is sometimes difficult when there are no characteristic imaging features. Therefore, we searched for secondary features, such as masticatory muscle atrophy, to ensure an accurate diagnosis. As the SMCT may involve or compress the trigeminal nerve, we suggest that subsequent denervation changes in the motor division of the trigeminal nerve may cause ipsilateral masticator muscle atrophy [19, 20]. Notably, the temporalis muscle is the most dominant masticatory muscle and is easily recognized on MR images of the brain. We determined the presence or absence of masticatory muscle atrophy by determining whether there was a decrease in muscle thickness [21]. Temporalis muscle thickness was measured at the level of the anterior limit of the septum pellucidum on axial T1-weighted images [22] (Fig. 2 and Fig. 3). We then calculated the percentage of atrophy as follows: [(normal muscle thickness—tumor side muscle thickness)/normal muscle thickness] × 100% [22]; positive values indicate a decrease in thickness (atrophy), whereas negative values indicate an increase in thickness.

Fig. 2
figure 2

Evaluation of schwannomas. A-I A female between the ages of 50 and 60 diagnosed with a trigeminal schwannoma on the left side of the MC and cerebellopontine cistern. A Postcontrast T1WI image showing a 2.9 cm heterogeneously enhancing tumor in the left MC and cerebellopontine cistern. B T2WI image showing high signals with cystic changes in the tumor. C, D No restricted diffusion in the DWI/ADC sequence. E, F The first tumor ROI, denoted as T, was meticulously placed over the corresponding region exhibiting the most intense signal within the solid components observed on DWI (E) and over the region displaying the least signal for ADC calculation (F). Subsequent tumor ROIs, labeled second and third, were established on distinct image sections (details not displayed). Supplementary ROIs were meticulously positioned over analogous regions of normal-appearing contralateral white matter situated in the medial aspect of the temporal lobe, denoted as WM, on DWI (b = 1000 s/mm2). The patient had a DWI ratio of 0.99, an apparent diffusion coefficient (ADCmin) of 1215 × 10−6 mm2/s, and an apparent diffusion coefficient (ADC) ratio of 1.61. G To measure temporalis muscle thickness, first, we used sagittal images to locate the level of the anterior limit of the septum pellucidum, at which point we applied axial T1WI and axial T2WI images for temporalis muscle evaluation. H In the axial T1WI image, we measured the thickest part of the bilateral temporalis muscles. The temporalis muscle was 4.8 mm on the tumor side and 6.8 cm on the contralateral side, suggesting masticatory muscle atrophy. I In the axial T2WI image, we evaluated fatty acid changes in the temporalis muscle. There was no increased signal in the temporalis muscle on the tumor side, implying that there was no significant fatty infiltration.

Full size image
Fig. 3
figure 3

Evaluation of meningioma. A-F A female between the ages of 50 and 60 diagnosed with meningioma on the right side of the MC and parasellar region. A Postcontrast T1WI image showing a 2.7 cm enhancing tumor with a dura tail appearance at the right MC. B, C Restricted diffusion in the DWI/ADC sequence. D, E The patient had a DWI ratio of 1.82, an ADCmin of 1042 × 10−6 mm2/s, and an ADC ratio of 1. F In the axial T1WI image, we measured the thickest part of the bilateral temporalis muscles. In this case, there was no masticatory muscle atrophy at the tumor side

Full size image

Surgical treatment and follow-up

Total or subtotal removal of the tumor is defined as the removal of more than 90% of the tumor, and partial removal or biopsy is defined as the removal of less than 90% of the tumor [23, 24]. The patients’ clinical records and 1-month postoperative MRI were reviewed to ascertain the surgical outcomes. All patients underwent regular follow-up in the OPD every 3 months during the first 2 years and then every 6 to 12 months thereafter. MRI of the brain was regularly performed during the postsurgical follow-up. Any signs of tumor recurrence or neurological complications were recorded. Tumor recurrence was defined as the presence of a residual, enhancing, or solid tumor with a volume increase of more than 20% compared with the first postoperative MRI [23].

Statistical assessment

All the statistical analyses were conducted using IBM® SPSS® software. Continuous variables are presented as means with standard deviations, and P values were calculated using the Mann–Whitney U test. Categorical variables are presented as counts and percentages, and P values were calculated using Fisher's exact test. Patients with missing values for any variable were excluded from the analysis of that specific variable. All reported P values were two-sided. P values less than 0.05 indicated statistical significance.

Results

Demographic features and clinical outcomes

The demographic characteristics and clinical outcomes of the 33 patients with SMCTs, including 16 with meningiomas and 17 with schwannomas, are shown in Table 1. There was no significant difference in symptoms such as blurred vision, facial numbness, or pain between the patients with meningiomas and the patients with schwannomas. The rate of total or subtotal resection of schwannomas was significantly higher than that of meningiomas (100% vs. 43.8%, p = 0.032). However, there was no significant difference in tumor recurrence rate or the survival rate between the patients with meningiomas and those with schwannomas.

Table 1 Demographics and MRI of 16 meningioma and 17 schwannoma patients under 3 cm
Full size table

MR findings

The MR features of the 33 SMCTs are shown in Table 1. The proportion of meningiomas with the dural tail sign was greater than that of schwannomas with the dural tail sign (50% vs. 0%, p < 0.001), and the proportion of schwannomas with cystic components was greater than that of meningiomas with cystic components (52.94% vs. 0%, p < 0.001). Compared with schwannomas, meningiomas also had significantly lower ADCmin values (820.575 ± 302.545 [86.1–1144.4] vs. 1372.424 ± 561.337 [355.7–2616.6], p < 0.001), lower ADC ratios (1.246 ± 0.234 [0.885–1.678] vs. 1.683 ± 0.576 [0.497–3.089], p < 0.001) and higher DWI ratios (1.392 ± 0.364 [0.891–2.360] vs. 0.829 ± 0.352 [0.299–1.801], p < 0.001). There was no significant difference between the number of meningiomas with a dumbbell shape and the number of schwannomas with a dumbbell shape (18.75% vs. 29.41%, p = 0.688) (Fig. 4). Compared with meningiomas, schwannomas were associated with masticatory muscle atrophy, as indicated by significant decreases in muscle thickness (11.24% ± 11.98% [−14% ~ 38%] vs. −6.71% ± 22.43% [−85.71% ~ 13.79%], p < 0.001).

Fig. 4
figure 4

Dumbbell shape of the SMCT image (A, B) Postcontrast T1WI image in two different patients. A A female between the ages of 50 and 60 diagnosed with a trigeminal schwannoma on the left side of the MC and cerebellopontine cistern. B A 41-year-old female diagnosed with meningioma on the right side of the MC and cerebellopontine cistern. Dumbbell-shaped tumors can be noted in both schwannomas and meningiomas

Full size image

The subgroup analysis of SMCTs less than 2.5 cm revealed similar results to that of SMCTs less than 3 cm (Table 2). The significant differences in the MR features between meningiomas and schwannomas were as follows: 1) a more prominent dura tail sign (4/9 [44.44%] vs. 0/13 [0%], p = 0.017); 2) few cystic components (0/9 [0%] vs. 5/13 [38.46%], p = 0.054); 3) lower minimum ADC (ADCmin) values (750.022 ± 381.242 [86.1–1144.4] vs. 1365.992 ± 623.02 [355.7–2616.6], p = 0.002); and 4) minimal masticatory muscle atrophy (−13.0 ± 26.0 [−86.0 ~ 3.0] vs. 11.24% ± 11.0 ± 12.0 (−14.0 ~ 38.0), p < 0.001).

Table 2 MRI features of 9 meningiomas and 13 schwannomas less than 2.5 cm in size
Full size table

We further analyzed the subgroup of very small Meckel’s cave tumors less than 2 cm (VSMCTs). There was no difference between meningiomas and schwannomas in terms of the presence or absence of masticatory muscle atrophy (−15% ± 29% [−86% ~ 3%] vs. 11% ± 18% [−14% ~ 38%], p = 0.078), the dural tail (3/7 [42.86%] vs. 0/4 [0%], p = 0.236) or the cystic component (0/7 [0%] vs. 1/4 [25%], p = 0. 364). However, compared with schwannomas, meningiomas had significantly lower ADCmin values (703.0 ± 424.558 [86.1–1144.4] vs. 1915.625 ± 771.0 [1118.8–2616.6], p = 0.009), lower ADC ratios (1.253 ± 0.243 [0.96–1.62] vs. 2.02 ± 0.713 [1.63–3.09], p = 0.005) and higher DWI ratios (1.353 ± 0.262 [0.99–1.84] vs. 0.737 ± 0.26 [0.35–0.93], p = 0.005) (Table 3 and Fig. 5).

Table 3 MRI features of 7 meningiomas and 4 schwannomas less than 2 cm in size
Full size table
Fig. 5
figure 5

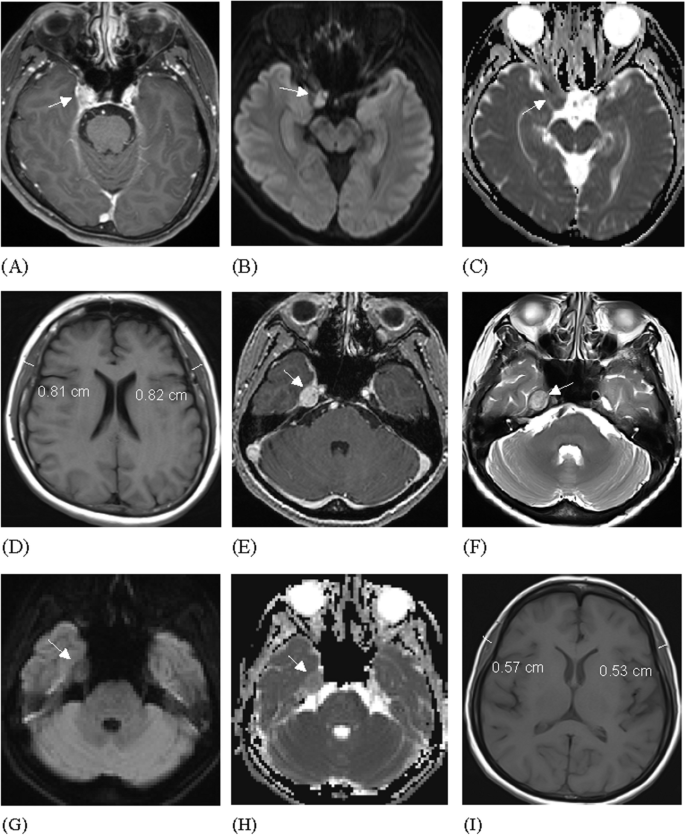

Evaluation of a small tumor (< 2 cm) (A-D) A female between the ages of 50 and 60 diagnosed with meningioma on the right side of the MC and parasellar region. A Postcontrast T1WI image showing a 1.2 cm enhancing tumor at the right MC. For the present small tumor, the appearance of the dura tail was not clearly identified. B, C Restricted diffusion in the DWI/ADC sequence in small tumors (in the parasellar region). D In the axial T1WI image, no significant masticatory muscular atrophy was identified. E-I A female between the ages of 50 and 60 diagnosed with a schwannoma on the right side of the MC. E In the postcontrast T1WI image, a 1.4 cm enhancing tumor at the right MC. F On T2W images, cystic changes were not clearly identified in such small schwannomas. G, H No restricted diffusion in the DWI/ADC sequence. I In the axial T1WI image, no significant masticatory muscular atrophy was identified

Full size image

Discussion

This study extensively investigated the diagnostic markers for the most common SMCTs, meningiomas and schwannomas. Our study revealed the significance of the dura tail sign, presence or absence of cystic components, presence or absence of ipsilateral masticatory muscle atrophy and DWI/ADC parameters are important imaging features that may aid in differentiating tumors smaller than 3 cm. Notably, the presence of ipsilateral masticatory muscle atrophy was strongly associated with schwannomas, providing a crucial clinical indicator for differential diagnoses alongside traditional imaging diagnoses on the basis of features such as the dural tail sign in meningiomas and the presence of cystic components in schwannomas. The ADC and DWI parameters offered critical insights. Compared with schwannomas, meningiomas presented significantly lower ADCmin values, indicating more restricted diffusion. This DWI/ADC parameter is particularly valuable in the diagnosis of very small meningiomas and schwannomas (< 2 cm in size), whereas the presence of the dural tail sign in meningiomas and cystic components, as well as masticatory muscle atrophy in schwannomas, is not readily discernible in VSMCTs. Our findings are summarized in Supplementary Table 3.

The present study revealed that the rate of total or subtotal resection of meningiomas was significantly lower than that of schwannomas. This aligns with earlier research, highlighting that meningiomas often have more complex attachments to the dura and surrounding bony structures, making complete resection more difficult [8]. Meningiomas originate from arachnoid cap cells and frequently invade adjacent dura and bone, requiring meticulous surgery to achieve clear margins without causing excessive damage to critical structures. In contrast, schwannomas, arising from Schwann cells of the trigeminal nerve, are typically well circumscribed and more easily separated from surrounding tissues, leading to higher rates of complete resection. Although the recurrence rates between these tumors did not show a significant difference in out study, possibly due to the relatively small sample size, the higher rate of meningioma recurrence noted in previous studies is also attributable to the difficulty of complete resection [6, 7].

The MC, a crucial cisternal space at the skull base, harbors the trigeminal nerve, which is essential for facial sensation and mastication. The trigeminal ganglion within the MC and the adjacent cavernous sinus, which contains several cranial nerves, including motor and sensory fibers of the trigeminal nerve and the internal carotid artery, are areas of interest when evaluating tumors in this location1. Both meningiomas and schwannomas are the most common MC tumors. Typical MR features, such as the dural tail sign in meningiomas and the presence of cystic components in schwannomas, are important for the diagnosis of both tumors. The presence of the dural tail sign in meningiomas is due to its attachment to the dura mater. The tumor often involves the dural blood supply, leading to enhancement of the dural attachment in post-contrast T1-weighted images [25]. The dural tail sign is usually absent in schwannomas, as they arise from Schwann cells within peripheral nerve sheaths, not from the dura mater [12]. Schwannomas are more prone to developing cystic components, which appear as well-defined, low-signal intensity areas on T1-weighted images and high-signal intensity areas on T2-weighted images. The reasons for the higher prevalence of cysts in schwannomas are not fully understood. The possible mechanisms of these cystic changes include intratumoral bleeding, degenerative changes, and central ischemic necrosis [15, 26].

In our investigation, the presence of the dural tail sign in meningiomas and cystic changes, as well as masticatory muscle atrophy in schwannomas, was not readily discernible in VSMCTs. However, the detection of restricted diffusion in meningiomas remains valuable under such circumstances. Meningiomas typically originate from arachnoid cap cells and adhere to the dura mater, resulting in the characteristic dural tail sign that is evident in imaging studies [25]. However, in smaller tumors, the extent of dural attachment may be limited, leading to an insufficient mass or surface area to generate a noticeable dural tail. In our study, tumors measuring 3 cm and 2.5 cm were sufficiently large to show the dural tail sign, while tumors smaller than 2 cm were too small to display this feature. Cystic changes within tumors, such as those observed in schwannomas, often arise from degenerative processes, including hemorrhage, necrosis, or cystic degeneration within the tumor tissue [15]. Nevertheless, these changes may need time to manifest on imaging studies and thus are more frequently observed in larger tumors. In smaller tumors, there might be inadequate time for significant cystic changes to develop, particularly if the tumor grows slowly, hence making cystic components less conspicuous or absent in VSMCTs. In our study, tumors measuring 3 cm and 2.5 cm were large enough to show cystic changes in schwannomas, whereas tumors smaller than 2 cm were too small to exhibit them.

In MRI sequences, DWI measures the movement of water molecules within tissues, and the ADC quantifies the degree of water diffusion, reflecting the cellular density and tissue architecture. Even in small tumors, microstructural alterations exist within the tissue, leading to changes in water diffusion patterns that can be captured by DWI. The study revealed significant differences in the DWI/ADC values between meningiomas and schwannomas, with meningiomas showing more restricted diffusion, which is also useful for VSMCTs. Schwannomas typically appear hyperintense on DWI and have high ADC values because of the presence of loose, myxoid matrix and cystic components that allow easier water diffusion [27]. Meningiomas usually appear hyperintense on DWI and have lower ADC values because of their cellularity and compact structure, hindering water movement [28]. In our study, all tumors, whether 3 cm, 2.5 cm, or smaller than 2 cm, displayed restricted diffusion in meningiomas.

There are no characteristic MRI features of VSMCTs. First, typical imaging characteristics, such as the dural tail sign in meningiomas or cystic components in schwannomas, require sufficient time to develop, but small lesions might not have had adequate time to mature and grow to display these features prominently [29]. Second, the presence of significant susceptibility artifacts at the skull base can limit the clarity of the tissue on MR images of small tumors. Last, small lesions may be challenging to resolve owing to the limited spatial resolution of standard MRI.

To solve the above issues, techniques such as high-resolution MRI or parallel imaging techniques, such as compressed sensing or sensitivity encoding (SENSE), multishot, and turbo spin‒echo sequences, can significantly reduce these artifacts, enhancing the sensitivity and resolution of imaging [30]. In cases where small lesions are obscured by artifacts originating from the skull base in the axial DWI plane, employing the coronal DWI scanning orientation can markedly increase the sensitivity for detecting subtle abnormalities, refine the demarcation of tumor margins, and mitigate skull base artifacts. Consequently, this strategy enables a more precise evaluation of diminutive lesions such as brain stem stroke [31]. Nevertheless, there is a lack of research on small tumors at present, so further investigation is necessary. In addition, previous research has suggested that magnetic resonance perfusion (MRP) and magnetic resonance spectroscopy (MRS) are advanced MRI techniques that can provide valuable insights into the metabolic and hemodynamic attributes of brain tumors [32]. These advanced imaging modalities can significantly improve the detection and differentiation of small meningiomas and schwannomas, thus enhancing preoperative planning and outcomes.

To our knowledge, this is the first study in which masticator muscle atrophy was used to aid the diagnosis of MC tumors. Our findings suggest that it may provide additional diagnostic value in evaluating these tumors. Some cases of masticator muscle atrophy resulting from trigeminal nerve function impairment associated with schwannomas have been reported [33,34,35]. The trigeminal nerve, which is the largest among the cranial nerves, plays a crucial role in providing both sensory and motor innervation to the muscles involved in chewing. Within the MC, this nerve branches into the ophthalmic (V1), maxillary (V2), and mandibular (V3) nerves. Notably, V3 is unique in that it encompasses both sensory and motor components, with its motor fibers specifically targeting the muscles responsible for mastication, namely, the medial pterygoid, lateral pterygoid, masseter, and temporalis muscles. The motor root of the trigeminal nerve travels inferiorly to the sensory root along the floor of the trigeminal cave [19, 20]. Schwannomas primarily arise from Schwann cells associated with the sensory root of the trigeminal nerve [36]. When these tumors affect the sensory fibers of the trigeminal nerve, they exert downward pressure on the motor fibers of V3 due to gravity, leading to partial motor function impairment and subsequent atrophy of the masticator muscles. Additionally, there have been rare instances of schwannomas involving the motor fibers of the trigeminal nerve directly [37], resulting in directly impaired motor function and consequent masticator muscle atrophy. In contrast, meningiomas originating in the MC stem from arachnoid cells of the arachnoid mater, which is positioned at the base of the skull within the MC, are less likely to involve or compress the motor fibers of the trigeminal nerve directly. Therefore, Schwannomas are more likely to cause evident masticatory muscle atrophy than meningiomas are (Fig. 6). This atrophy is caused by the tumor's impact on the nerve, inducing denervation and subsequent muscle wasting [21, 38]. However, in cases of smaller tumors, the extent of nerve involvement and resulting muscle atrophy may be less significant. This is especially true considering that smaller tumors may have a shorter duration of growth and activity in the MC, which might not accurately depict muscle changes on MRI. Therefore, masticatory muscle atrophy was not evident in the VSMCTs in our study. In our study, tumors measuring 3 cm and 2.5 cm were large enough to show masticatory muscle atrophy in schwannomas, whereas tumors smaller than 2 cm were too small to display this feature.

Fig. 6
figure 6

SMCT image and sensory and motor fibers of the trigeminal nerve. A Anatomy of the sensory and motor roots of the trigeminal nerve. The motor fibers of the trigeminal nerve travel beneath the sensory fibers. B Schwannomas arising from the sensory fibers of the trigeminal nerve exert downward pressure on the motor fibers of V3 due to gravity, leading to partial motor function impairment and subsequent atrophy of the masticator muscles. C Schwannomas arising from the motor fibers of the trigeminal nerve result in directly impaired motor function and consequent masticator muscle atrophy. D Meningiomas positioned at the base of the MC are less likely to compress the motor fibers of the trigeminal nerve

Full size image

Limitations

There are several limitations to our study. First, a relatively small number of patients were included. Future studies with larger cohorts are warranted to validate and extend our results. Second, the study focused on patients with pathologically confirmed schwannomas and meningiomas who underwent surgery, potentially leading to selection bias in the exclusion of those not indicated for surgery. Third, we excluded patients with significant susceptibility artifacts at the skull base. While this decision was made to ensure the integrity and reliability of DWI/ADC measurements for small tumors, it acknowledges the potential challenge that such artifacts pose in real-world clinical settings. These exclusion criteria might limit the generalizability of our findings to all patients with small tumors at the skull base, as artifacts can occasionally obscure tumor characteristics or mimic pathological findings.

Although previous literature has reported different outcomes for meningiomas and schwannomas, our study found no significant differences in recurrence rates or survival between these tumors. This could be attributed to the relatively small sample size and potential selection bias. Lastly, our study suggests an association between decreased masticatory muscle thickness and schwannomas. However, this finding does not necessarily indicate a direct causal relationship between schwannomas and masticatory muscle atrophy. We hypothesize that schwannomas may interact with the trigeminal nerve, potentially leading to muscle atrophy, but further studies are required to elucidate the exact mechanisms underlying this phenomenon.

Conclusions

In conclusion, our retrospective study emphasizes the importance of comprehensive clinical and MR evaluations in the diagnosis of SMCTs. This study highlights the importance of masticator muscular atrophy, in addition to traditional imaging features such as the dural tail sign and cystic components, in aiding the differentiation of small meningiomas and small schwannomas within the MC. ADC and DWI parameters also provide valuable insights for the radiological diagnosis of small lesions, especially VSMCTs.
