CT-based delta-radiomics for predicting pathological response to neoadjuvant immunochemotherapy in esophageal squamous cell carcinoma: a multicenter study

BMC Medical Imaging volume 24, Article number: 329 (2024) Cite this article

Abstract

Background

The study aimed to investigate the predictive value of delta-radiomics derived from computed tomography (CT) for pathological complete response (pCR) to neoadjuvant immunochemotherapy (NICT) among patients with esophageal squamous cell carcinoma (ESCC), helping clinicians determine whether to modify the neoadjuvant treatment strategy, proceed to surgery, or forgo surgery altogether.

Methods

A total of 140 ESCC patients from two institutions (Database 1 = 93; Database 2 = 47) who underwent NICT and surgery were retrospectively included in the study. The training set consisted of patients from Database 1, while the testing set included patients from Database 2. All patients underwent contrast-enhanced CT scans before the start of the treatment and prior to the operation. The delta-radiomics features were calculated as the relative net change of radiomics features between the two-time points. Feature selection was conducted using Pearson correlation analysis, intraclass correlation coefficients, and the fivefold cross-validation with least absolute shrinkage and selection analysis. Four models were established, comprising a clinical model, a pre-treatment radiomics model, a delta-radiomics model, and a mixed model. Area under the curve (AUC) and decision curve analysis were used to assess the performance and the clinical value of the models.

Results

Less than half of the tumors (40/140, 28.6%) showed pCR following NICT. The delta-radiomics model displayed AUC of 0.827 and 0.790 in the training and testing set for predicting pCR, which was superior to the clinical model based on age and clinical tumor node metastasis (cTNM) stage (0.758 and 0.615) and the pre-treatment radiomics model (0.787 and 0.621). Furthermore, the delta-radiomics model demonstrated a more excellent AUC value in the testing set than the mixed model (0.847 and 0.719), which integrated clinical and delta-radiomics features.

Conclusions

The delta-radiomics model exhibited better diagnostic performance in preoperative prediction of pCR for NICT in ESCC patients compared to the clinical, pre-treatment radiomics, and mixed models.

Peer Review reports

Background

Esophageal cancer is a widespread cancer with a high fatality rate worldwide [1, 2]. Asia has the highest incidence, where esophageal squamous cell carcinoma (ESCC) is the most common type [3, 4]. Neoadjuvant immunochemotherapy (NICT) has recently shown promising results in patients with ESCC. Emerging evidence has demonstrated that NICT can induce optimal tumor regression, have low adverse effects, limit postoperative complications, and may even provide survival benefits for patients suffering from advanced ESCC [5,6,7].

Pathological complete response (pCR) is regarded as a substantial therapeutic outcome of neoadjuvant treatment and a reliable surrogate indicator for assessing postoperative survival [8]. Accurate prediction of pCR is crucial for guiding treatment decisions, as not all patients benefit from NICT. Ineffective neoadjuvant therapy might lead to postponed surgery and raise the risk of unnecessary adverse events and immune-related adverse events (irAEs) manifesting as hematologic and gastrointestinal toxicity, pneumonitis, hypothyroidism, and hepatitis, among others [9]. By predicting whether patients achieve pCR after neoadjuvant therapy, it assists doctors in determining whether to modify the neoadjuvant treatment strategy, proceed to surgery or forget surgery completely. Since pCR can only be confirmed after surgery, several studies have explored clinical and radiographic parameters before surgery to predict pCR to NICT for ESCC [8, 10,11,12], including metabolic parameters from positron emission tomography (PET) and systemic inflammation-tumor markers. Despite their predictive value, hematological indexes can be influenced by various factors, and metabolic parameters may not represent the spatial distribution of the entire tumor. Thus, it is crucial to discover more efficient and precise markers and develop reliable models to predict pCR in ESCC patients undergoing NICT.

Radiomics is a method that utilizes algorithms to derive plenty of quantitative characteristics from images [13]. Computed tomography (CT) is a routine examination for tumor staging, and CT-based radiomics has been reported to assist in the noninvasive preselection for ESCC patient therapy [14]. Several previous studies [15, 16] modeled radiomics features based on pre-treatment CT for predicting pathological response to neoadjuvant chemotherapy or neoadjuvant chemoradiotherapy (NCRT) in esophageal cancer. Nonetheless, these researches were limited to a single period and did not include information about therapy responses.

Delta-radiomics is a novel concept that refers to changes in radiomics characteristics between initial and subsequent data throughout therapy. Some studies [17,18,19] have demonstrated the superiority of CT-based delta-radiomics for the prediction of response and prognosis to immunotherapy or chemotherapy for tumors such as lung, rectal, and gastric cancers. To date, there has been limited research on whether CT-based delta-radiomics can predict pCR to NICT in ESCC [20].

The study sought to explore the efficacy of CT-based delta-radiomics features in predicting pCR to NICT in ESCC patients. We hypothesize that these features can serve as reliable predictors of pCR, ultimately aiding clinicians in making optimal therapeutic decisions regarding altering the neoadjuvant treatment strategy or proceeding with surgery.

Materials

The study was conducted in accordance with the Declaration of Helsinki. This retrospective study was approved by the Ethics Committee of Wuhan Union Hospital, and the requirement for written informed consent was waived.

Patients and inclusion criteria

The study retrospectively included 140 ESCC patients from two institutions (Henan Provincial People’s Hospital, Database 1 = 93; Wuhan Union Hospital, Database 2 = 47) who underwent NICT combined with surgery between June 1, 2020, and October 1, 2023. The following inclusion criteria were used: (1) age ≥ 18 years old; (2) in stage T1N1−3 or T2−4aN0−3 M0 by the eighth edition AJCC/UICC Tumor node metastasis (TNM) staging system [21]; (3) patients at least received two cycles of NICT; (4) two contrast-enhanced CT scans, baseline CT and CT prior to the operation within one week, were obtained. Patients with missing data or CT images with artifacts were excluded from the analysis (Fig. 1). ESCC patients in our hospital are routinely given contrast-enhanced CT scans preoperatively, as these can provide detailed information on lesion morphology, enhancement characteristics, and boundary conditions, which are essential for staging and assessing therapeutic efficacy. Database 1 were allocated to the training set and Database 2 to the testing set. Additionally, we recorded the following clinical and radiographic characteristics of gender, age, body mass index (BMI), smoking status, drinking status, tumor location, tumor length, and cTNM. Tumor location was divided into upper, middle and lower esophagus according to the AJCC/UICC eighth edition [22]. BMI was derived from measurements of height and weight. The clinical TNM stage (cTNM) of ESCC was assessed using endoscopic ultrasound and enhanced CT.

Fig. 1
figure 1

Flow diagram shows patient selection and exclusion criteria. ESCC, esophageal squamous cell carcinoma; NICT, neoadjuvant immunochemotherapy; CT, computed tomography

Full size image

To avoid including too many subjects, which could expose them to unnecessary risks and waste time and resources, or too few subjects, which might fail to achieve the desired objective, we calculated the sample size of the study using an online calculator [23] recommended by Monti et al. [24]. As shown in Supplementary 1, to estimate an AUC of 0.9 with a 95% confidence interval length of 0.15, given a sample prevalence of 30%, a total of 107 subjects would be required, indicating that our sample size was sufficient to support our results.

Treatment protocols

All patients underwent at least two cycles of NICT prior to surgery. The use of immune checkpoint inhibitors (ICIs) primarily involved pembrolizumab (200 mg), tislelizumab (200 mg), camrelizumab (200 mg), toripalimab (240 mg) or sintilimab (200 mg), administered intravenously every three weeks. The TP regimen incorporated platinum-based drugs (such as cisplatin or nedaplatin: 80 mg/m2;carboplatin: AUC of 5 mg/ml/min) combined with paclitaxel (175 mg/m2) or docetaxel (70 mg/m2), administered intravenously every three weeks. The PF regimen included platinum-based drugs (50 mg/m2) and 5-fluorouracil (800 mg/m2 24 h by continuous infusion on days 1–4), given intravenously every two weeks. The dosage and administration of chemotherapeutic agents were tailored to each patient based on their individual condition and body surface area. ICIs are dosed using a fixed dose, depending on the specific drug. Surgery consisted of either open or minimally invasive transthoracic esophagectomy.

Evaluation of tumor response

Similar to previous studies [16, 25], patients were categorized into two groups after NICT and surgery: the pCR group, composed of 40 patients, and the non-pCR group, composed of 100 patients, according to whether there were viable tumor cells in the primary tumor area and all resected lymph nodes.

CT image acquisition

Database 1 performed the CT scans using a multi-slice spiral CT scanner (GE Light Speed VCT). The acquisition settings were as follows: 64 × 0.6 mm collimation, automated tube current control at 120 kVp, reconstructed layer thickness and interval of 1.25 mm/1.25 mm. Nonionic iodine contrast medium (iopromide, Ultravist 300 mg/mL, Bayer, Germany) was injected intravenously at a 2.5–3.5 mL/s rate.

Database 2 performed the CT scans using two multi-slice spiral CT scanners (SOMATOM Definition, SOMATOM Definition AS+). The acquisition settings were as follows: 64 × 0.6 mm and 128 × 0.6 mm collimation, automated tube current control at 120 kVp, reconstructed layer thickness and interval of 1.5 mm/1.5 mm. Nonionic iodine contrast medium (iohexol 350 mg/mL, Beilu Pharmaceutical Co., Ltd.) was injected intravenously at a 2–3 mL/s rate.

Radiomics feature extraction

Two radiologists (HSS and YTZ, with 32 and 3 years of experience in thoracic radiology, respectively) semi-automatically delineated all cases on CT images using the 3D Slicer software without knowledge of the histologic findings. The tumor segmentation protocol was as follows [25, 26]: (1) delineate the tumor contour on the mediastinal (width, 350 HU; level, 40 HU) window of the contrast-enhanced CT images taken before and after NICT; (2) avoid the esophageal lumen during delineation; (3) the delineated region of interest (ROI) of the same patient remained consistent in position and length across both time points; (4) two radiologists evaluated all contours, and any disagreements regarding the tumor’s boundaries must be resolved through discussion. The volumes of interest (VOIs) of tumors were automatically reconstructed using the 3D-slicer software. To minimize errors introduced by resampling, we analyzed the data to determine the most common voxel spacing, which was found to be (0.7, 0.7, 1.5) mm. Sixty-six of 140 (47.1%) 3D CT images were then resampled to this spacing using a B-spline curve interpolation algorithm. A bin width of 25 was applied for gray dispersion before radiomics examination. A total of 1037 radiomics features were extracted from the segmented ROI utilizing the Pyradiomics package in Python (Fig. 2, with additional details available at https://pyradiomics.readthedocs.io/en/latest/features. html) [27]. According to the image type, it can be classified into four types, including 93 gradient, 93 logarithmic transformed, 107 original, and 744 wavelet transformed features. Furthermore, based on the feature class, it can be categorized into 198 first-order features, 264 GLCM features, 154 GLDM features, 176 GLRLM features, 176 GLSZM features, 55 NGTDM features, and 14 shape features. Additionally, to assess intra-observer and inter-observer variability, we randomly selected 30 cases by using a random seed, and the intraclass correlation coefficient (ICC) was employed. Features with an ICC value exceeding 0.8 were considered to be stable and reproducible. Inter-observer repeatability was evaluated by two radiologists performing tumor segmentation on the same image collection, while intra-observer repeatability was assessed by one radiologist repeating segmentation one week later. SMOTE is used to generate artificial/synthetic samples for the minority class [28].

Fig. 2
figure 2

Radiomics workflow

Full size image

Delta‑radiomics features

All patients underwent CT scans at baseline and prior to surgery. The radiomics features (RFs) were obtained at the two time points separately. The relative net change in RFs between these two time points is referred to as delta-RFs [29]:

Relative Net Change = (Featurepre−operation − Featurebaseline)/Featurebaseline.

Additionally, we conducted a self-assessment of our work using the CLEAR checklist [30] and METRICS score [31], which were included as Supplementary 2 and Supplementary 3, respectively.

Statistical analysis

The statistical analyses were conducted with SPSS 21 and R 4.0.2. Continuous variables were presented as mean ± standard, and independent sample t tests were utilized for analysis. Categorical variables were presented as frequency (percentage), and analyzed using Fisher’s exact test. Radiomics features were processed by z-score normalization. Pearson correlation analysis was used to eliminate the radiomics features with high correlation (r > 0.8) in the training set. When two features exhibited a high correlation, we selected the feature with a stronger correlation to pCR, as indicated by a higher absolute Pearson correlation coefficient. And inter-observer variability analysis were employed to exclude features of low reliability (ICC < 0.8). The fivefold cross-validation least absolute shrinkage and selection (LASSO) analysis was carried out for feature selection on the training set. A multivariate LR algorithm was used to build a classification model. Subsequently, four models were established: a clinical model, a pretreatment radiomics model, a delta-radiomics model, and a mixed model. Receiver operating characteristic (ROC) analysis was performed to evaluate the predictive performance of the models for pCR. The confounder matrix was used to demonstrate the predictive capacity of the models. The accuracy, sensitivity, and specificity of each model were then determined. The AUC values were utilized to express and compare the predictive performance of the models via the DeLong test. The two-tailed p < 0.05 was considered statistically significant.

Results

Clinical and CT characteristics

In the study, most patients were male (108/140, 77.1%). The average age was 62.4 ± 7.9 years, with a mean BMI of 23.2 ± 3.2 kg/m2. More than half of the participants were non-smokers (82/140, 58.6%) and non-drinkers (89/140, 63.6%). The majority of the tumors exhibited non-pCR (71.4%, 100/140, Fig. 3), and the rest of the tumors achieved pCR (28.6%, 40/140, Fig. 3). Most of the tumors were found in the middle esophagus (89/140, 63.6%). Regarding tumor staging, 67.1% of the patients (94/140) were diagnosed with stage III ESCC at baseline. The average tumor length was 70.9 mm (Table 1).

Table 1 Demographic and clinical data of 140 cases from two institutions
Full size table
Fig. 3
figure 3

Representative images of ESCC underwent NICT. (A, B) CT images of ESCC before and after NICT were shown (arrows). (C) Resection specimen showed this patient had non-pCR. (D, E) CT images of ESCC before and after NICT were shown (arrows). (F) Resection specimen showed this patient had pCR

Full size image

CT, computed tomography; ESCC, esophageal squamous cell carcinoma; NICT, neoadjuvant immunochemotherapy; pCR, pathological complete response.

The clinical model based on age and cTNM achieved good performance in predicting pCR in both the training and testing sets, yielding AUCs of 0.758 (95%CI, 0.658–0.858) and 0.615 (95%CI, 0.427–0.804), accuracy of 71% and 68.1%, specificity of 81.8% and 76.5%, and sensitivity of 44.4% and 46.1% (Fig. 4A, Table 2). The proportion of smokers, drinkers, and tumors located in the middle esophagus in the training set was notably higher than in the testing set. Besides, the training set exhibited greater age and tumor length in comparison to the testing set (p < 0.05). Nevertheless, no significant differences were seen in sex, BMI, cTNM, or pCR (p > 0.05) between the sets.

Fig. 4
figure 4

Receiver operating characteristic curves for the prediction of pCR status of clinical model (A), pretreatment radiomics model (B), delta-radiomics model (C), and mixed model (D) in the training and testing sets. pCR, pathological complete response

Full size image

Pretreatment radiomics model

After eliminating 575 redundant and unstable features using Pearson correlation analysis and ICC, 462 radiomics features were selected for LASSO assessment. Subsequently, a pre-treatment radiomics model was established based on nine contributing radiomics features (Supplementary  4). The model achieved prediction performances for pCR of 0.787 (95%CI, 0.675-0.900) and 0.621 (95%CI, 0.436–0.806) in the training and testing sets, respectively, with the accuracy of 75.2% and 57.4%, specificity of 77.3% and 52.9%, and sensitivity of 70.4% and 69.2% in predicting pCR in the training and testing sets (Fig. 4B, Table 2).

Delta‑radiomics model

A total of 462 delta-radiomics features were identified for building the delta-radiomics model after conducting Pearson correlation analysis and ICC. It was found that five delta-radiomics features significantly differed between pCR and non-pCR tumors by using LASSO penalized logistic regression analysis (Fig. 5). The LR model recognized delta_wavelet.LLH_glrlm_Long RunLowGray Level Emphasis, delta_wavelet.LLL_gldm_Small DependenceLowGray Level Emphasis, mean_ original_shape_SurfaceVolumeRatio, mean_wavelet.LHL_glcm_Idmn, and mean_ wavelet.HHL_firstorder_Mean. A delta-radiomics model was then developed and achieved an AUC of 0.827 (95%CI, 0.730–0.925) in the training set and 0.790 (95%CI, 0.646–0.933) in the testing set. Table 3 presented the chosen delta-radiomics features and their corresponding coefficients. Moreover, the model achieved the accuracy of 74.2% and 72.3%, specificity of 68.2% and 70.6%, and sensitivity of 88.9% and 76.9% for pCR prediction in the training and testing sets (Fig. 4C, Table 2).

Table 2 Confounder matrix for the four sets in the four models
Full size table
Fig. 5
figure 5

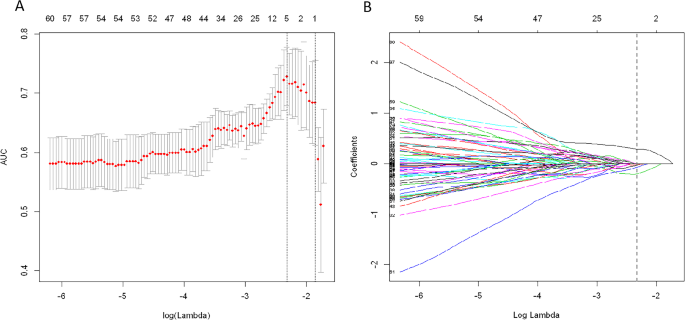

Least absolute shrinkage and selection operator (LASSO) logistic regression of radiomics features (A) and the regularization parameterλ(B)

Full size image

Mixed model

Additionally, we built a mixed model by incorporating selected clinical and delta-radiomics features. The model yielded an AUC of 0.847 (95%CI,0.766–0.928) in the training set and 0.719 (95%CI,0.567–0.872) in the testing set for predicting pCR (Fig. 4D). Moreover, the model demonstrated the accuracy of 71.0% and 61.7%, specificity of 68.2% and 52.9%, and sensitivity of 77.8% and 84.6% in the training and testing sets (Table 2). Subsequently, a nomogram consisting of age, cTNM, and Rad-score was built (Supplementary 5).

Table 3 Features included in the delta-radiomics model and their coefficients
Full size table

Performance comparison between different models

The delta-radiomics model demonstrated a higher predictive ability in the testing cohort compared to the clinical, pre-treatment radiomics, and mixed models (AUC, 0.790 vs. 0.615 vs. 0.621 vs. 0.719, respectively). However, the differences in AUC values among the models were not statistically significant. Table 2 summarized the findings of confounder matrix analysis. The delta-radiomics model exhibited better accuracy, sensitivity, and specificity than the pretreatment radiomics model in the testing cohort.

Clinical use

Decision curve analysis (DCA) was conducted to assess the clinical utility of the prediction models (Fig. 6). Results showed that the clinical, pretreatment radiomics, delta-radiomics, and mixed models provided a positive net benefit for patients in comparison to the treat-all and treat-none models.

Fig. 6
figure 6

Decision curve for the four models

Full size image

Discussion

Researches have demonstrated that pCR is related to improved prognosis, and predicting pCR can help make treatment decisions before surgery, assisting clinicians decide on the subsequent actions in the treatment plan, such as whether to modify the neoadjuvant treatment approach, proceed with surgery, or forgo surgery entirely. In the present study, a CT-based delta-radiomics model was built and validated for pCR prediction of NICT in ESCC patients, which performed well and was superior to the clinical, pretreatment radiomics and mixed models. This finding indicated that the delta-radiomics features can function as a crucial tool for decision assistance in identifying responses to NICT.

In our study, the average age of patients with ESCC was 62.4 years old, and approximately 77% of ESCC cases occurred in men, consistent with the standard population according to Global Cancer Statistics 2020 [2]. Conventional imaging can show features such as lesion size, location, and enhancement modalities but cannot reveal more in-depth information about ESCC. Some studies explored radiomics for predicting pathological response to ESCC. Oda et al. [15] developed a radiomics model based on pretreatment CT to predict pathological response to neoadjuvant chemotherapy for EC patients, achieving a sensitivity of 0.620, specificity of 0.860, and AUC of 0.815. Similarly, Wang et al. [16] used pretreatment CT-based radiomics features to predict the pathological response to NCRT in ESCC with an AUC of 0.817 in the testing set. However, these studies were limited to single time points and did not account for changes in therapy response.

In the study, the performance of the clinical and pretreatment radiomics models for predicting pCR to NICT was unsatisfactory, while the delta-radiomics model demonstrated strong performance, achieving an AUC of 0.827 and 0.790 in the training and testing sets, respectively. This may be because delta radiomics encompasses image- and time-dependent data and enables the dynamic evaluation of treatment-related tumor alterations. In addition, the mixed model combining clinical and radiomics features had a lower AUC value than the delta-radiomics model. The result may be that the inclusion of clinical features reduces the overall performance, suggesting that the delta-radiomics model is more robust.

According to the delta-radiomics model, five radiomics features were significantly correlated with response to NICT in ESCC patients. The SurfaceVolumeRatio refers to the mean of the surface area to volume ratio, suggesting that more compact and spherical profiles tend to have a better therapy response [32]. The firstorder_Mean indicated the mean gray level intensity within the tumor. The remaining three features were second-order features (glcm, gldm and glszm) that described the variability of gray-level intensity values in the image, thus reflecting the heterogeneity within the tumor [33]. The results indicated that the radiomics features, in addition to reflecting size and density, can also reveal heterogeneity of tumors, providing more information related to treatment response. Recent studies have shown that multi-omics approaches have the potential for improving cancer diagnosis and prognostic assessment [34,35,36]. Integrating radiomics with pathomics, metabolomics, and genomics can significantly enhance the predictive value compared to single-omics analyses. The role of this non-invasive method in esophageal cancer requires further exploration.

Furthermore, several studies revealed that therapy-induced changes in radiomics features may be valuable in predicting the prognosis of cancer patients [18, 29, 37]. Shen et al. [18] demonstrated that CT-based delta-radiomics combined with preoperative clinical variables had a better prediction of prognosis after preoperative neoadjuvant chemotherapy in advanced gastric cancer than pathological TNM stage and tumor regression grade classification. Nakamoto et al. [37] attempted to evaluate the predictive value of delta-radiomics based on cone-beam CT for prognostic of patients with ESCC who received concurrent chemoradiotherapy. They revealed that there were significant differences in delta-radiomics features between the high- and low-risk groups, with a C-index value of 0.821. Thus, the value of delta-radiomics in predicting the prognosis of ESCC patients needs to be further investigated.

The research had certain limitations. Firstly, the retrospective nature and small sample size of the study could cause patient selection bias and poor generalization. Secondly, the difference in the CT scanning machines, imaging protocols and some demographic characteristics between the two databases may influence the results. However, we minimized these differences by resampling the CT images of the enrolled patients and normalizing the extracted radiomics features. The variability in multicenter radiomics studies should be addressed in the future. Thirdly, while SMOTE is effective at addressing class imbalance, it may also lead to overfitting and altering the data distribution, potentially reducing generalization performance and introducing bias. Fourthly, as there are no established or standardized guidelines for esophageal cancer segmentation, the radiologists in our study followed protocols from prior research to perform tumor segmentation. Finally, no analysis was done on the correlation between biomarkers, such as PD-L1 expression, and radiomics features, because the study was retrospective.

Conclusions

In summary, we proposed a CT-based delta-radiomics model with promising performance in predicting pCR to NICT in ESCC patients, outperforming the clinical, pretreatment radiomics and mixed models. In the future, multicenter, multi-omics and large-scale studies need to be carried out to eliminate the flaws mentioned above and validate our findings. Additionally, exploring the connection between radiomics characteristics and cancer prognosis, as well as biomarkers, such as PD-L1 expression, can provide further insights.
