Evaluation of mandibular and maxillary second molar root canal anatomy in a Turkish subpopulation using CBCT: comparison of Briseno-Marroquin and Vertucci classifications

BMC Medical Imaging volume 25, Article number: 2 (2025) Cite this article

Abstract

Background

This retrospective study aims to characterise the root canal morphology of maxillary and mandibular second molars using cone-beam computed tomography (CBCT). The number of roots and canal configurations were evaluated using both the Vertucci and Benjamı´n Brisen˜ o Marroquı´n classification systems.

Methods

A total of 1084 second molar images (523 maxillary; 266 right and 257 left side and 561 mandibular; 285 right and 276 left side) were evaluated from 320 CBCT scans analyzed for the Turkish subpopulation. CBCT imaging provided superior visualisation of root canal anatomy compared to periapical radiography. The findings revealed diverse root canal configurations, with variations observed even within the same population. Statistical analyses, including the chi-squared test, were used to assess correlations between root number and demographic variables such as age and sex.

Results

According to Benjamı´n Brisen˜ o Marroquı´n classification system, the most common configuration for upper right three-rooted teeth mesial root was 3URM2−1 (n:66, 35.7%), for distal root was 3URM1 (n:169, 91.4%), and for palatal root was 3URM1 (n:165, 89.2%). Additionally, the most common configuration for upper left three-rooted teeth mesial root was 3271 (n:50, 28.4%), for distal root was 3ULM1 (n:160, 90.9%), and for palatal root was 3ULM1 (n:158, 89.8%). In lower left molars, the most common configuration in the two-rooted teeth mesial root was 2LLM2 (n:114, 49.4%), and for the distal root was 2LLM1 (n:170, 73.6%). For lower right the most common configuration for two-rooted teeth mesial root was 2LRM2 (n:125, 52.5%), and for distal root was 2LRM1 (n:173, 72.7%)(p < 0.05).

Conclusion

The primary outcome was observed that the root canal anatomy of upper and lower second molars may differ in both classifications of Turkish subpopulation. While Vertucci's classification was inadequate in some cases, Briseno-Marroquin classification was able to classify all upper and lower second molars with a single code. This new classification is a more useful system for classifying all second molars. There is a statistically significant difference exists among the new configuration according to the distribution of the teeth analyzed.

Peer Review reports

Introduction

The success of endodontic treatments relies heavily on several critical factors, including the intricate anatomy and morphology of the root canal system, thorough disinfection of the root canal, and effective sealing [1,2,3,4,5,6]. A deep understanding of root canal anatomy and morphology is crucial for the success of endodontic treatments [7,8,9,10]. Among many factors, the root canal system stands out as paramount due to the complexity of its anatomy and morphology. However, the root canal system may be complex and/or colonised by a variety of microorganisms. Thus, detailed knowledge of tooth anatomy is vital to pursuing endodontic treatment because the inability to detect and treat all identified canals may result in treatment failure [4, 11, 12]. Knowledge of root canal morphology is important for clinicians to master therapeutic techniques and clinical outcomes are improved. Understanding the root canal system involves identifying the number of roots and canals, the canal configurations, and their cross-sectional shapes [6, 13,14,15].

Weine et al. were the first to classify root canal morphology [7] within a single root, also they added an additional type in 1982 [7]. They focused on single-rooted teeth in their classification, creating four main categories. This classification is based on whether the canal is single, there are two canals from beginning to end, or the root is divided into two at the middle or apex. In 1974, Vertucci et al. recognized [7, 10, 16] further complex root canal systems and reported eight types of configurations according to the pattern of division in the main root canal from the pulp chamber to the apex of the root. However, Vertucci’s classification may not allow for unambiguous description given their classification variability according to the Vertucci system. Sert and Bayirli [10] added fourteen supplemental types to Vertucci's classification system. A new classification was introduced n Brisen˜ o Marroquı´n et al. in the year 2015, which is simple, easy to understand, and more accurate at classifying root canal configurations compared to earlier systems [7, 17]. This system uses the three-dimensional diagnostic imaging advantages. The benefit of Benjamı´n Brisen˜ o Marroquı´n classification is its user-friendly coding system, which is accessible to both students and dentists [17]. The coding system assigns individual codes for the tooth number (TN), the number of roots, and the configuration of the canals.

Vertucci classified root canal morphology into eight types. This classification is more detailed than Weine’s classification. The first 3 types have single apical foramen and contain separation inside them, except type I. From type IV to type VII, teeth have two apical foramina. Type VIII differs from the others by having three apical foramens (Fig. 1).

Fig. 1
figure 1

Canal configurations as originally described by Vertucci in 1984. The configurations are described as follows: (a) type I, b type II, c type III, d type IV, e type V, f type VI, g type VII, and h type VIII

Full size image

Sert and Bayirli added supplementary configurations to Vertucci’s Classification due to the systems’ limitations. The authors evaluated the root canal configuration in maxillary and mandibular permanent teeth amongst the Turkish population using a clearing technique. They added fourteen types to Vertucci’s classification, numbering them from Type IX to Type XXIII [4, 10]. These added classes were developed to better describe intra-canal branching accounting for situations with more than two canal openings and more than three apical foramina. The Vertucci classification does not consider the number of roots in the anterior and posterior teeth which is a major shortcoming, this insufficiency in explaining the root canal anatomy creates a necessity for a new classification [4, 7, 10].

The new four-digit coding system describes the anatomical features of roots in a consistent manner regardless of the tooth type and whether a tooth is single or multi rooted [18]. This new system for classifying root and canal morphology has defined any ‘division’ of a root, whether in the coronal, middle or apical third, is coded as two or more roots. To enable researchers to interpret the configuration of the root canal consistently, the components of the pulp cavity, including the pulp chamber and root canal, should be defined accurately. For correct use of this classification correctly, it is essential to utilise three-dimensional imaging systems such as CBCT or Micro-CT [3, 19, 20]. Due to its high radiation exposure, micro-CT is not safe enough to use on patients. Conversely, CBCT has a lower radiation level, is more cost-effective, and provides sufficient information about the root canal system [11]. Several studies have found root canal configurations to be highly complex and found Non classifiable canal configurations during evaluation of internal and external anatomical canal variation using 3D imaging techniques [4, 11, 21, 22].

In this new classification used to define the root canal system, the canals are evaluated from the orifice to the apex. In single-rooted teeth, the orifice is located at the cementoenamel junction (CEJ), while in double and multi-rooted teeth, it is located at the furcation line [2, 7, 17, 18] (Table 1).

Table 1 Explaining the number of roots for Benjamı´n Brisen˜ o Marroquı´n classification
Full size table

The two-dimensional nature of periapical radiographs may result in missed roots and canals [6, 23]. Changing the horizontal tube angulation may improve visualisation of the tooth anatomy, however this technique's applicability may be limited in patients who have a smaller mouth space [24]. With the improving technologies, three-dimensional diagnostic imaging modalities such as CBCT allow greater detection of root and canal morphology prior to endodontic treatment.

Micro-CT has become the “gold-standard” for evaluating bone morphology and microstructure in the ex vivo models [4, 14, 25]. On the other hand, clinical CBCT has been widely applied in dentistry for over two decades, offering high image quality with low radiation dose at a low cost. Compared to micro CBCT, CBCT is less invasive but still an accurate method that can be used in clinical works. Moreover, CBCT is superior to periapical radiography in successfully detecting root canal anatomy. The root can be easily examined in more detail with different sections [4, 10, 18]. Difficulty working in molar teeth and the complex anatomy of root canals may cause treatment failure. Two-Dimensional images taken from periapical radiographs may not always provide accurate results due to superpositions. At this point, treatment success increases when the relevant tooth is examined with 3D imaging methods such as CBCT and the canal anatomy is understood correctly [11, 26, 27].

This study aims to investigate the description and comparison of the differences among Vertucci and the Benjamı´n Brisen˜ o Marroquı´n classifications using CBCT evaluations of mandibular and maxillary second molars in a Turkish subpopulation primary and secondary outcomes. The null hypothesis of our study is that the classifications by which we assessed the root canal anatomy of the upper and lower second molars will be similar regardless of the left and right sides.

Materials and methods

Sample selection

Ethical approval for this study was obtained from the Non- Interventional Clinical Research Ethics Committee of Istanbul Medipol University (protocol no. 309/2024). Statistical analyses were performed using the G Power version 3.1 software program (Heinrich University, Dusseldorf, Germany) [28]. The Chi square test was used for analysing contingency tables, 764 samples of total groups, consisting of four sections. This was determined with an α (error margin) = 0.05, 0.15 effect (w), 0.95 power (1-β) level, yielding a minimum sample size of 191.

Patient selection and study duration

This cross-sectional retrospective study evaluated 1084 s molar images (523 maxillary; 266 right and 257 left sides and 561 mandibular; 285 right and 276 left sides second molars, respectively) obtained from 320 CBCT scans in the Turkish subpopulation (Fig. 2). The study included CBCT examinations showing mandibular and maxillary second molars with complete root development and integrity, and the ages of the patients examined ranged from 18 to 76 years [29].

Fig. 2
figure 2

Flowable chart of study design

Full size image

The images were used to determine the root number and canal configurations of maxillary and mandibular second molars. Both left and right second molars were included. Scans from both male (n:503) and female (n:581) subjects were evaluated. Participant age at the time of the scan was recorded, but no information on race or ethnicity was collected. The existing CBCT database was used, and no new scans were acquired for this study. Scans were assessed chronologically back from the most recently acquired one until the necessary sample size was achieved. The study time period ranged from 2021 to 2024.

Inclusion criteria

Scans containing fully formed maxillary and mandibular molars were included in this research. The scans were needed to exhibit adequate quality for visualizing individual roots and canals. CBCT images that met the following criteria were included:

  1. (i)

    Scans that included the entire pulp chamber and root canal system were considered (496 upper and 545 lower second molars).

  2. (ii)

    Presence of a fully mature and erupted maxillary and mandibular second molar.

  3. (iii)

    Participants over 18 years old

  4. (iv)

    Participants selected from Turkish ethnicity.

Exclusion criteria

Teeth were excluded for the following reasons:

  1. (i)

    Second molars with open apex,

  2. (ii)

    Incompletely visualised teeth,

  3. (iii)

    Evidence of previous endodontic treatment

  4. (iv)

    The presence of posts and crowns,

  5. (v)

    Surgical or pathological alterations made to tooth anatomy, or

  6. (vi)

    The existence of artefacts that impede proper visualization of tooth anatomy.

Regarding these criteria, 27 maxillary and 16 mandibular second molars were excluded. The exclusion ratio was %5.

Evaluation of radiological images

All scans were previously acquired by using an I-CAT Next Generation CBCT (Hatfield, USA) unit in the Department of Dentomaxillofacial Radiology at Istanbul Medipol University. The principle of “as low as diagnostically acceptable,” (ALADA) concerning the exposure of patients to ionising radiation, was strictly adhered to at the time of image acquisition. The images were viewed using the i-CAT Next Generation Vision software (Imaging Sciences International, Hatfield, USA). The scans were originally taken for several reasons including the diagnosis of maxillofacial trauma, impacted tooth, implant planning, and decision making for endodontic and orthodontic treatment cases. All scans were retrospectively analysed, and no new scans were acquired for the purpose of this study (Fig. 3).

Fig. 3
figure 3

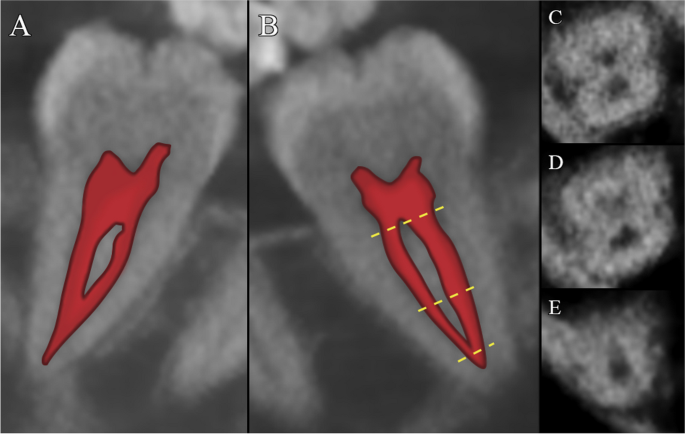

Lower left molar (LLM) and Lower right molar (LRM) of the same patient. Vertucci's Classification Type II represents the LRM tooth (A) and Brisen˜ o Marroquı´n et al. classification 1LLM2−1 represents the LLM tooth (B); the coronal slice (C), a section of the middle third (D), and a section of the apical third (E)

Full size image

The CBCT unit resolution ranged from 100 to 600 μm, with 300 to 750 basic frames. The anode current was 1 to 14 mA and the anode voltage was 54 to 90 kV. The focal spot was 0.6 × 0.6 mm (about 0.02 in) in diameter. The unit was capable of producing scans with a voxel size ranging from 100 to 600 μm, with fields of view ranging between 5.0 × 5.7 cm and 23.0 × 27.5 cm in size. During evaluation of the images, sagittal, axial, coronal slices with a thickness of 0.1 mm were evaluated. Also the ‘line’ property of the software was used to reform additional planes through the coronal, sagittal and axial planes.

Endodontic examination of images

Before all evaluations, a Dentomaxillofacial Radiologist (DMFR) trained the two Endodontist observers with regards to details of the planes, and forming new planes paralel to the longitudinal axis of the roots as well as the usage of the Vision software on 50 CBCT images that were not included into the study. Images were evaluated simultaneously by two calibrated examiners with 10 years of experience in endodontics through the planes that are mentioned above and a joint decision was made. In case of uncertainty, a dentomaxillofacial radiologist was consulted for a final opinion. For inter researcher rates, the DMFR rated %15 of all cases after 1 month. A maximum allowed voxel size of 200 μm was selected. Scans exceeding these thresholds are deemed insufficient quality for evaluation.

Single-rooted teeth do not have a bifurcation or have an indistinct separation at the extreme end of the apical third. This distinction is important for understanding root canal anatomy. Multi-rooted teeth have two, three or more roots that can be counted. In multi-rooted teeth, the furcation region can be clearly observed and a bifurcation can be seen from the very beginning or the middle of the root (Fig. 4). In the proposed classification, the root canal configuration begins with determining the number of canals in the pulp floor. Our first number is determined by the number of canals in the coronal third. Then, the number of canals in the middle third is determined. The numbers are separated by drawing a straight line. Then, the number of canals in the apical third and the apical foramina are determined. For example, the configuration of a tooth with 2 canals in the coronal and middle thirds, a single canal in the apex and a single foramina can be written as TN2−2–1−1. To simplify the appearance, one of the consecutive numbers may not be written. In this case, an expression like TN2−1 will emerge.

Fig. 4
figure 4

Examples of cases found in second molar teeth: According to Brisen˜ o Marroquı´n et al. classification 1LRM2−1 (A), 1LRM2−3–2 (B), 1LRM2−1 (C), 2URM M2 (D),1URM3−1 (E), 1LRM.1−2 (F)

Full size image

For Double-rooted teeth, If the observer considers root fusion as a separate condition and will use a previously made classification to describe the type of root fusion, then can add the abbreviation describing the root fusion in the classification he will use to the left of the tooth number, just as he would for other dental anomalies.

In the new classification, root fusions in 3-rooted teeth can be shown in different ways as described by Zhang et al. [30] and can be used in the new coding system. It is not always possible to differentiate between single-rooted teeth with deep developmental grooves and teeth that have fused along the root. In such cases, the number of roots is normally considered to be the most common number of roots in that tooth. For example, deep developmental grooves can be seen in the buccolingual direction at the root of the lower central incisor. In this case, this tooth is still classified as single-rooted.

Statistical analysis

Interobserver reliability was calculated using percentage agreements. Statistical analyses were performed using the SPSS version 26.0 software program (IBM Corp., Armonk, NY, USA). Within the scope of the study, measurement data for basic descriptive statistics were categorical and expressed as frequency and percentage. Chi-square analysis was used to compare the data from the study. Statistical significance level was accepted as p < 0.05.

Results

Interobserver correlation was performed with 130 samples to test the consistency of evaluation between two specialist dentists for vertucci and new classifications for canals. According to the results obtained from the correlation and Cohen’s κ coefficients; there is high consistency between the two specialists in terms of the evaluation of measurements (Table 2).

Table 2 Inter-observer and ıntra-observer correlation of two specialists’ evaluations
Full size table

Root morphology and number of roots

The data demonstrated a significant correlation between the number of roots in the upper molars of the patients (x2=48.528, p < 0.05). The ratio of teeth with three roots was found to be higher in upper molars. A substantial correlation was found between the number of roots in the lower molars of the patients (x2=57.455, p < 0.05). The ratio of teeth with two roots was found to be higher in lower molars (Table 3).

Table 3 Number of upper and lower molars
Full size table

In the upper molar single-rooted teeth analyzed, the proportion was 2.7%. In two-rooted teeth, the proportion was 14.4%. In three-rooted teeth, the proportion was 81.1%, and in four-rooted teeth, the ratio was 1.8%. Moreover, there is a statistically significant difference in the patients based on the number of roots in the upper molars (x2=48.528, p < 0.05).

In the analyzed lower molar single-rooted teeth, the proportion was 5.8%. In two-rooted teeth, the proportion was 89.8%, and in three-rooted teeth, the proportion was 4.3%. There is a notable statistical difference in the patients according to the number of roots in the lower molar teeth (x2=57.455, p < 0.05).

Root canals configuration of second upper molars according to Vertucci’s classification

As seen in Table 4, the most prevalent vertucci classification among the single-rooted upper teeth examined in the upper right region was XV (n:4, 28.6%). For the analysed two-rooted upper molars, the most common classification for the buccal root was IV (n:17, 37.8%). While type I (n:43, 95.5%) was the most frequently observed classification for the palatal root. Among the three-rooted upper molars analysed, the highest vertucci classification for specimens located in the mesiobuccal root was type II (n:67, 36.8%). In the distobuccal root, type I (n:169, 91.4%) was the most common classification, and similarly, type I (n:165, 89.2%) was the most frequently observed for the palatal root. Among the four rooted upper molars analysed, the highest vertucci classification was type I (n:2, 50.0%) for the specimens located in the mesiobuccal root. The Vertucci classification for all specimens in the distobuccal root was type I (n:1, 100%), and type I (n:1, 100%) was also the highest classification for teeth in the palatal root.

Table 4 Comparison of Vertucci classification according to the number of roots and canals in upper and lower molars
Full size table

The most common vertucci classification in the single-rooted upper teeth examined in the upper left region was XVIII (n:5, 33.3%). For the analysed two-rooted upper molars, the most prevalent classification in the buccal root was type IV (n:17, 33.4%). While type I (n:43, 84.3%) was the most frequently observed classification for the palatal root. Among the three rooted upper molars examined, the highest vertucci classification was type II for specimens located in the mesiobuccal root (n:53, 30.5%). The highest vertucci classification for the specimens located in the distobuccal root was type I (n:160, 90.9%) and the highest vertucci classification for the teeth located in the palatal root was type I (n:158, 89.8%). Among the four rooted upper molars examined, type I (n:2, 50.0%) was the highest classification for specimens in the mesiobuccal root. All specimens in the distobuccal root were classified as type I (n:4, 100%) likewise the highest vertucci classification for teeth in the palatal root was type I (n:4, 100%). There was a statistically significant difference between the Vertucci classifications according to the distribution of the teeth analyzed (x2=117.111, p < 0.05) (Table 4).

Root canals configuration of second lower molars according to Vertucci’s classification

The most common Vertucci classification for the examined lower left single-rooted teeth was type II (n:4, 20%). Among the two-rooted lower molars analysed, type IV (n:114, 50.4%) was the most frequently observed classification in the mesial root. In contrast, type I (n:170, 70.4%) was predominant in the distal root. For the three-rooted lower molars, type I was again the most common classification, found in the mesiobuccal root (n:7, 70.0%), the distal root (n:5, 50%), and the mesiolingual root (n:5, 50%). Turning to the lower right single-rooted teeth, type II was also the most common classification (n:8, 26.7%). In the analysed two-rooted lower molars, the mesial root again shows type IV as the most prevalent classification (n:125, 53.0%), while the distal root predominantly features type I (n:173, 73.0%).

Among the three-rooted lower molars on the right side, type I was the highest classification observed in the mesiobuccal root (n = 3, 60.0%), distal root (n:4, 80.0%), and mesiolingual root (n:4, 80.0%). Overall, there is a statistically significant difference between the Vertucci classifications based on the distribution of the examined teeth (x2 = 256.074, p < 0.05) (Table 4).

Root canals configuration of second upper and lower molars according to Benjamı´n Brisen˜ o Marroquı´n classification

For the proposed Benjamı´n Brisen˜ o Marroquı´n classification, the most common configuration for upper right single-rooted teeth was 1URM3−2 (n:4, 20%). The most common configuration for two-rooted teeth; buccal root was 2URM2 (n:17, 37.8%) and palatal root was 2URM1 (n:43, 95. 5%). The most common configuration for upper right three-rooted teeth; mesial root was 3URM2−1 (n:66, 35.7%), in distal root was 3URM1 (n:169, 91.4%), and in palatal root was 3URM1 (n:165, 89.2%) (Fig. 5). Only 4URM1 configuration was observed in all roots of upper right second molars with four roots.

Fig. 5
figure 5

Examples of most founded 8 type of root canal structers

Full size image

For the Benjamín Briseño Marroquín classification, the most common configuration in the upper left single-rooted teeth was 1ULM3−1 (n:5, 31.3%). In the two-rooted teeth, the most prevalent configuration in buccal root was 2ULM2 (n:17, 33.4%), while in the palatal root was 2ULM1 (n:43, 84.3%). For the Benjamı´n Brisen˜ o Marroquı´n classification, the most common configuration for upper left three-rooted teeth; mesial root was 3ULM2−1 (n:52, 29.5%), in contrast the most prevalent configuration for distal root was 3ULM1 (n:160, 90.9%), and the most common configuration for palatal root was 3ULM1 (n:158, 89.8%). Notably, only 4ULM1 configuration was observed in all roots of upper right second molars with four roots (Table 5).

Table 5 Comparison of Benjamı´n Brisen˜ o Marroquı´n classification according to the number of roots and canals in upper and lower molars
Full size table

According to the Benjamı´n Brisen˜ o Marroquı´n classification, the most frequent configuration in the lower left single-rooted teeth was 1LLM2−1 (n:4, 14.8%), In the case of two-rooted teeth; the most common configuration in the mesial root was 2ULM2 (n:114, 49.4%), while the distal root exhibited the configuration 2ULM1 (n:170, 73.6%). For lower left three-rooted teeth, the configuration 3ULM1 was the most frequent for the mesiobuccal root (n:7, 70%), and this same configuration also appeared most often in both the distal root 3ULM1 (n:5, 50%), and the mesiolingual root 3ULM1 (n:5, 50.0%).

In the lower right single-rooted teeth, the predominant configuration was 1URM2−1 (n:8, 23.5%), For two-rooted teeth, 2URM2 was the most common configuration in the mesial root (n:125, 52.5%) and the distal root showed 2URM1 (n:173, 72.7%). When examining lower right three-rooted teeth, the most common configuration for the mesial root was 3URM1 (n:3, 60%), which was also the case for both the distal root 3URM1 (n:4, 80%), and the mesiolingual root 3URM1 (n:4, 80.0%). There is a statistically significant difference exists among the new configuration according to the distribution of the teeth analysed (x2 = 343.068, p < 0.05) (Table 5).

Discussion

The outcome of root canal treatment can be influenced by several factors. The presence of bacteria is the main cause of most non-healed root canal treatments. Additionally, use of improper radiographic projections, including different mesiodistal angulations to identify various root canal system aberrations, such as extra canals often result in failure, even with a correct diagnosis [31]. Other morphologic factors include lateral and accessory canals, canal curvatures, canal wall irregularities, fins, and isthmuses [32].

A comprehensive understanding and accurate description of root and canal anatomy is one of the critical preliminary steps for successful root canal treatment. Three-dimensional diagnostic imaging methods such as CBCT are non-invasive imaging methods that can be applied before starting endodontic treatment. With the help of CBCT, root canal anatomy can be easily examined [33]. A non-invasive technology that allows for 1:1 accurate three-dimensional assessment of tooth dimensions and root and canal morphology [27]. CBCT has been used to study a variety of tooth types, both experimentally and clinically [34]. To address deficiencies in existing systems, a new coding system for classifying root and canal morphology, accessory canals and anomalies has been introduced. In recent years, micro-computed tomography (micro-CT) [6, 14, 15, 17, 25] and cone beam computed tomography (CBCT) have been extensively used to study the details of root and canal anatomy in extracted teeth and within clinical settings [5, 6, 8, 9, 13, 21, 22, 24, 30, 31, 35,36,37,38,39,40].

Considering these findings, CBCT has been employed to evaluate the root morphologies in the present study. The number of root teeth were classified according to Vertucci’s classification, whereas canal configurations and numbers were classified by using Benjamı´n Brisen˜ o Marroquı´n [17] and Ahmad et al.’s [6] system. Voxel size was determined as 200 µm, similar to other studies [9, 36, 38]. Some of the previous studies focused on the comparison of C-shaped configurations in mandibular second molars between different populations in the world. In the present study, only the Turkish subpopulations root canal numbers and configurations were evaluated. Additionally, gender and age were considered as other criterias during classification in this study, similar to other previous studies [5, 9, 13,14,15, 21, 22, 24, 31, 37, 39, 40].

In this study, the most common Vertucci classification in buccal roots of two rooted upper molars was type IV, on the other hand Type I was most prevalent in palatinal roots. For three rooted upper molars, the highest Vertucci Classifications for Mesiobuccal, Distobuccal and Palatinal roots were; Type II, Type I and Type I respectively. Four rooted upper molars each root classified in Type I. No difference found between the right and left region of upper second molars. The results which are belong to two rooted upper molars are consistent with the findings of Buchanan et al.’s [9] who studied the maxillary second premolars, as well as Mheiri et al. [39], who examined the morphology of maxillary first molars, palatal and distal roots. Similarly, in the lower molars, type I was the most common Vertucci classification, followed by type IV. These results align with the findings reported by Kim et al. [26]. Mağat et al.classifed the mesiobuccal root canals in maxillary first molars according to both Vertucci’s and Ahmed et al.’s systems. They found Type I was most common in mesiobuccal canals according to Vertucci’s Classification. On the other hand, when they evaluated root canals according to Ahmed et al.’s system, they found 316MB1 and 326MB1 most common respectively in right and left regions. These results are not similar with our findings [41].

In this study, the most common type of Vertucci classification in lower molar single rooted teeth was Type II. In two rooted teeth, the most common Vertucci classification in the Mesial root was type IV, while Type I was the most common in Distal root. These findings are agreement with Saber et al.’s findings [2]. Among the examined lower molar three rooted teeth, the highest Vertucci classification was Type I for Mesibuccal, mesiolingual and distal canals. The findings found similar for both left and right regions. These findings indicate that both round-shape canals and single-canal anatomy are usually classified in Vertucci’s classification Type I. Mesial roots which contain 2 canals, may be classified as Type IV or Type II. These results compatible with the other studies [9, 15, 21, 39]; however, those studies evaluated the teeth by using micro-CT and four-digit classifying system [17, 25]. The roots which have round shape, generally classified in Type I. Senan et al. [15], in agreement with our findings on a large scale. Type II was found in higher rate in mesial root of mandibular second molars whereas our findings mainly referred Type IV. Hatipoğlu et al.(2023) evaluated the middle mesial canal in the mandibular first molar teeth by using CBCT [42]. The prevalence ranged from %1-%23, overall %7. In another study, Hatipoğlu et al. [43] evaluated the distolingual canals in mandibular first molars using CBCT. They found the prevalence of distolingual canal ranged from %3-%50 and the overall prevalence %22. The overall findings assume similar with our findings (Type I) related to distal canal. They asserted the study varies by ethnicity, however in the present study different ethnicity wasn’t compared each other. Only Turkish subpopulation was evaluated.

In the present study, when the teeth root configurations based on the region of the localisation according to Benjamin Brisen Marroquin’s classification, it was found that the results were mostly similar for both right and left regions in the upper second molars, also it’s similar for lower second molars. The most common configuration for upper right two-rooted teeth buccal root is 2URM2 and but then for upper left two rooted teeth buccal root is 2ULM2. For the palatinal canals, the findings were similar both left (2ULM1) and right (2URM1) regions. For the Benjamin Brisen Marroquin’s classification, the most common configuration for upper right three-rooted mesial root is 3URM2−1, whereas for upper left three rooted mesial root is 3ULM2−1, the most common configuration for distal root is 3URM1 in upper right molars; 3ULM1 is the most prevalent type in upper left second molars. For palatinal root configuration is commonly 3URM1 in upper right second molars; 3ULM1 in upper left second molars. These findings are correlated with the Wolf et al.’s study which evaluated the teeth by using microct [14]. They suggested that the root canal configuration of maxillary 2. Molar is heterogeneous [14]. However, comparison of the single rooted teeth results were quite different according to the region. The configuration canal results were for upper right second molar and upper left second molars; 1URM3−2, 1ULM3−1 respectively. In upper second molars with three roots, it was found that mesial roots have 2 canals which are fusing near the apex. Distal and palatinal roots have 1 canal for each. These findings are expected by the examiners in this study.

The evaluation of lower second molars root configuration according to Benjamin Brisen Marroquin’s classification revealed to comment about the symmetrical structure of the teeth. The findings indicated that the root canal configurations were so similar in lower second molars. The most frequent type for lower left single rooted was 1LLM2−1, while it was 1LRM2−1 for lower right single rooted second molars for both left and right regions. In two rooted teeth’s mesial canal configuration for lower left second molars and lower right second molars was 2LLM2 and 2LRM2 respectively. Distal roots findings were similar again both right (2LRM1) and left lower (2LLM1) second molars. The distribution of root canal configurations in lower left three rooted teeth was for all root canal types; MB:3LLM1, D:3LLM1 and P:3LLM1, on the other hand the results were so similar in lower right second three rooted molars. The most configuration in left second molars for mesiobuccal root, distal root and mesiolingual root was 3LLM1. In the right region of mandibula, the findings were the similar. For MB:3LRM1, D:3LRM1 also ML: 3LRM1, Abarca et al. evaluated the mandibular 1. and 2. molar root canals morphology using by CBCT, and classified the canals according to Ahmad et al.’s classification. They found the similar results with our findings [16].

These results obviously revealed that symmetrical structure of root canals commonly in Turkish subpopulation. In Contrary, Alfawaz et al. found the unilateral presence of C shaped root canal system more common [12]. The other studies suggested the symmetrically configuration of root canals [8, 15] In the present study; canal orifices generally begin with two canals and than canals are getting fused in the single rooted lower second molars. The root canal may have only a foramen near the apex. In two rooted lower second molar teeth, number of mesial canals were 2, while distal canals were 1. It was a predicted result for this study. When the three roots examined in lower second molars, it was seen that all the roots have 1 canal for each. If we adapt the Benjamin Brisen Marroquin’s classification to Vertucci ‘s Classification system, all results of this study are coherent. The previous CBCT studies [1, 2, 7, 8, 10, 15, 18] mainly based on Vertucci’s classification, whereas Buchanan et al.[1], Abarca et al. [16] classified the root canals in order to adapt the system that Ahmad et al.’s classification [13]. The results of studies that examined the micro-CT [3, 4, 6, 14] evaluated according to the 4 digit system. So, the comparison of the results between our study and the previous studies can achieve the explanation of the other classifications. The four digit system could be described; dividing the roots into thirds. Each of part includes coronal, middle and apical thirds, respectively. The fourth digit indicates the number of foramina [6]. If the litreature is searched, it can clearly seen that number of studies that had classified the roots according to the new classifications are so restricted. Because of these limitations, we compared our findings associated with the CBCT in addition to this microct studies.

Both Vertucci classification and the new coding system aimed to determine the anatomical variations in root structures. The classification systems which based on root canal structure on several root levels are more detailed and complicated when compared with the others.The new coding system describes the anatomical features of roots in a consistent manner regardless of the tooth type and whether a tooth is single or multi rooted [7].

Generally, morphological studies didn’t explain the beginnig point of canal orifices and ending point Of the pulp chamber. Not only Vertucci’s classification system but also Weine et al.’s classification system hadn’t described these necessary points. The new system for root and canal morphology determines the the root canal configuration with a first point till foramen apicale through the canal [6]. Magat et al., classified the mandibular incisors according to Vertucci’s and Ahmed’s classification system. They emphasized that Vertucci’s classification system is inadequate in some cases whereas Ahmed et al.’s system was able to classify all mandibular incisors with a single code [44]. Despite the similar findings between Vertucci’s system and new coding system in our study; the new coding system allows more detailed classification.

In the present study, some images were not so clear in order to classify the root canals excessively correct. In such circumstances, two examiners evaluated the images in order to exclude or include with consensus and classifed according to the accurate image.

Conclusion

In Brief, the configuration of root canal morphologies classified according to Vertucci and Benjamin Brisen Marroquin’s systems. Most of the findings exhibited that the anatomical structure is symmetrical for both sides in Turkish Subpopulation. Mesial canals configuratios can be variable when the compared with other roots. Palatinal roots and distal root canals indicated Type I (single structure) commonly. Mesial root canals both in maxillary and mandibulary teeth, exhibited Type IV and rarely Type II. The correlation between the gender and the root number was assesed. In terms of anatomic variation of root canals, the increased rate was found in female than male patients.

Limitations

Overall, this study emphasises the importance of employing comprehensive classification systems to accurately characterise root canal morphology and highlights the significance of adequate sample size determination for robust statistical analysis. The insights gained from this study contribute to enhancing the understanding of root canal anatomy, ultimately improving the success rates of endodontic treatments in clinical practice.

Data availability

Data supporting the findings of this study are available from the corresponding author upon reasonable request.

Abbreviations

CBCT:

Cone-beam computed tomography

Micro-CT:

Micro-computed tomography

TN:

Tooth number

ULM:

Upper left molar

URM:

Upper right molar

LLM:

Lower left molar

LRM:

Lower right molar

M:

Mesial

D:

Distal

B:

Buccal

P:

Palatinal

MB:

Mesiobuccal

DB:

Distobuccal

ML:

Mesiolingual

References

  1. Briseñ Marroquín B, A El-Sayed MA, Willershausen-Zönnchen B. Morphology of the Physiological Foramen: I. Maxillary and Mandibular Molars. 2004;30(5). https://doiorg.publicaciones.saludcastillayleon.es/10.1097/00004770-200405000-00005.

  2. Leal JN, da Silva E, Queiroz W, de Castro R, Nejaim Y, Silva IV, A., Haiter-Neto, F., Silberman, A., & Cohenca, N. Evaluation of root canal configuration of maxillary and mandibular anterior teeth using cone beam computed tomography: An in-vivo study. Quintessence Int. 2016;47:19–24. https://doiorg.publicaciones.saludcastillayleon.es/10.3290/j.qi.a34807.

    Article  Google Scholar

  3. Ahmed HMA. A critical analysis of laboratory and clinical research methods to study root and canal anatomy. Int Endod J. 2022;55(S2):229–80. https://doiorg.publicaciones.saludcastillayleon.es/10.1111/iej.13702. John Wiley and Sons Inc.

    Article  PubMed  Google Scholar

  4. Karobari MI, Arshad S, Noorani TY, Ahmed N, Basheer SN, Peeran SW, Marya A, Marya CM, Messina P, Scardina GA. Root and root canal configuration characterization using microcomputed tomography: a systematic review. J Clin Med. 2022;11(9). https://doiorg.publicaciones.saludcastillayleon.es/10.3390/jcm11092287.

  5. Nejaim Y, Gomes AF, de Rosado L, P. L., Freitas, D. Q., Martins, J. N. R., & da Silva, E. J. N. L. C-shaped canals in mandibular molars of a Brazilian subpopulation: prevalence and root canal configuration using cone-beam computed tomography. Clin Oral Invest. 2020;24(9):3299–305. https://doiorg.publicaciones.saludcastillayleon.es/10.1007/s00784-020-03207-6.

    Article  Google Scholar

  6. Ahmed HMA, Ibrahim N, Mohamad NS, Nambiar P, Muhammad RF, Yusoff M, Dummer PMH. Application of a new system for classifying root and canal anatomy in studies involving micro-computed tomography and cone beam computed tomography: Explanation and elaboration. Int Endod J. 2021;54(7):1056–82. https://doiorg.publicaciones.saludcastillayleon.es/10.1111/iej.13486. Blackwell Publishing Ltd.

    Article  CAS  PubMed  Google Scholar

  7. Ahmed HMA, Versiani MA, De-Deus G, Dummer PMH. A new system for classifying root and root canal morphology. Int Endod J. 2017;50(8):761–70. https://doiorg.publicaciones.saludcastillayleon.es/10.1111/ij.12685. Blackwell Publishing Ltd.

    Article  CAS  PubMed  Google Scholar

  8. Baghbani A, Bagherpour A, Ahmadis Z, Dehban A, Shahmohammadi R, Jafarzadeh H. The efficacy of five different techniques in identifying C-shaped canals in mandibular molars. Aust Endod J. 2021;47(2):170–7. https://doiorg.publicaciones.saludcastillayleon.es/10.1111/aej.12445.

    Article  PubMed  Google Scholar

  9. Buchanan GD, Gamieldien MY, Tredoux S, Vally ZI. Root and canal configurations of maxillary premolars in a South African subpopulation using cone beam computed tomography and two classification systems. J Oral Sci. 2020;62(1):93–7. https://doiorg.publicaciones.saludcastillayleon.es/10.2334/josnusd.19-0160.

    Article  PubMed  Google Scholar

  10. Karobari MI, Parveen A, Mirza MB, Makandar SD, Nik Abdul Ghani NR, Noorani TY, Marya A. Root and root canal morphology classification systems. Int J Dent. 2021;2021. https://doiorg.publicaciones.saludcastillayleon.es/10.1155/2021/6682189. Hindawi Limited.

  11. Arman S, Nouroloyouni A, Salem Milani A, Sheikhfaal B, Noorolouny S, Saleh Haghgou F, Xiavi HM. Prevalence of Isthmi and Root Canal Configurations in Mandibular Permanent Teeth Using Cone-Beam Computed Tomography. Biomed Res Int. 2024;2024:9969860. https://doiorg.publicaciones.saludcastillayleon.es/10.1155/2024/9969860.

    Article  PubMed  PubMed Central  Google Scholar

  12. Chen C, Zhu T, Wu H, Zhao X, Leng D, Wang J, Yang L, Wu D. Prevalence and correlation of C-shaped root canals of mandibular premolars and molars in Eastern Chinese individuals. Sci Rep. 2022;12(1). https://doiorg.publicaciones.saludcastillayleon.es/10.1038/s41598-022-24381-5.

  13. Razumova S, Brago A, Howijieh A, Barakat H, Kozlova Y, Baykulova M. Evaluation of cross-sectional root canal shape and presentation of new classification of its changes using cone-beam computed tomography scanning. Appl Sci (Switzerland). 2020;10(13). https://doiorg.publicaciones.saludcastillayleon.es/10.3390/app10134495.

  14. Wolf TG, Kim P, Campus G, Stiebritz M, Siegrist M, Briseño-Marroquín B. 3-Dimensional Analysis and Systematic Review of Root Canal Morphology and Physiological Foramen Geometry of 109 Mandibular First Premolars by Micro–computed Tomography in a Mixed Swiss-German Population. Journal of Endodontics. 2020;46(6):801–9. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.joen.2020.03.002.

    Article  PubMed  Google Scholar

  15. Wolf TG, Kozaczek C, Siegrist M, Betthäuser M, Paqué F, Briseño-Marroquín B. An Ex Vivo Study of Root Canal System Configuration and Morphology of 115 Maxillary First Premolars. Journal of Endodontics. 2020;46(6):794–800. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.joen.2020.03.001.

    Article  PubMed  Google Scholar

  16. Saber SEDM, Ahmed MHM, Obeid M, Ahmed HMA. Root and canal morphology of maxillary premolar teeth in an Egyptian subpopulation using two classification systems: a cone beam computed tomography study. Int Endod J. 2019;52(3):267–78. https://doiorg.publicaciones.saludcastillayleon.es/10.1111/iej.13016.

    Article  CAS  PubMed  Google Scholar

  17. Briseño-Marroquín B, Paqué F, Maier K, Willershausen B, Wolf TG. Root Canal Morphology and Configuration of 179 Maxillary First Molars by Means of Micro-computed Tomography: An Ex Vivo Study. Journal of Endodontics. 2015;41(12):2008–13. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.joen.2015.09.007.

    Article  PubMed  Google Scholar

  18. Ahmed HMA, Dummer PMH. A new system for classifying tooth, root and canal anomalies. Int Endod J. 2018;51(4):389–404. https://doiorg.publicaciones.saludcastillayleon.es/10.1111/iej.12867. Blackwell Publishing Ltd.

  19. Brea G, Gomez F, Gomez-Sosa JF. Cone-beam computed tomography evaluation of C-shaped root and canal morphology of mandibular premolars. BMC Oral Health. 2021;21(1). https://doiorg.publicaciones.saludcastillayleon.es/10.1186/s12903-021-01596-y.

  20. Gomez F, Brea G, Gomez-Sosa JF. Root canal morphology and variations in mandibular second molars: an in vivo cone-beam computed tomography analysis. BMC Oral Health. 2021;21(1). https://doiorg.publicaciones.saludcastillayleon.es/10.1186/s12903-021-01787-7.

  21. Saber SM, Seoud MAE, Sadat SMAE, Nawar NN. Root and canal morphology of mandibular second molars in an Egyptian subpopulation: a cone-beam computed tomography study. BMC Oral Health. 2023;23(1). https://doiorg.publicaciones.saludcastillayleon.es/10.1186/s12903-023-02939-7.

  22. Sönmez Kaplan S, Kaplan T, Sezgin GP. Evaluation of C-shaped canals in mandibular second molars of a selected patient group using cone beam computed tomography: prevalence, configuration and radicular groove types. Odontology. 2021;109(4):949–55. https://doiorg.publicaciones.saludcastillayleon.es/10.1007/s10266-021-00616-1.

    Article  PubMed  Google Scholar

  23. Iandolo A, Pisano M, Buonavoglia A, Giordano F, Amato A, Abdellatif D. Traditional and recent root canal irrigation methods and their effectiveness: a review. Clin Pract. 2023;13(5):1059–72. https://doiorg.publicaciones.saludcastillayleon.es/10.3390/clinpract13050094. Multidisciplinary Digital Publishing Institute (MDPI).

    Article  PubMed  Google Scholar

  24. Pan JYY, Parolia A, Chuah SR, Bhatia S, Mutalik S, Pau A. Root canal morphology of permanent teeth in a Malaysian subpopulation using cone-beam computed tomography. BMC Oral Health. 2019;19(1). https://doiorg.publicaciones.saludcastillayleon.es/10.1186/s12903-019-0710-z.

  25. Wolf TG, Paqué F, Woop AC, Willershausen B, Briseño-Marroquín B. Root canal morphology and configuration of 123 maxillary second molars by means of micro-CT. Int J Oral Sci. 2017;9(1):33–7. https://doiorg.publicaciones.saludcastillayleon.es/10.1038/ijos.2016.53.

    Article  PubMed  PubMed Central  Google Scholar

  26. Kim HS, Jung D, Lee H, Han YS, Oh S, Sim HY. C-shaped root canals of mandibular second molars in a Korean population: a CBCT analysis. Restor Dent Endod. 2018;43(4). https://doiorg.publicaciones.saludcastillayleon.es/10.5395/rde.2018.43.e42.

  27. Saber S, el Sadat SA, Taha A, Nawar NN, Azim AA. Anatomical analysis of mandibular posterior teeth using CBCT: an endo-surgical perspective. Eur Endod J. 2021;6(3):264–70. https://doiorg.publicaciones.saludcastillayleon.es/10.14744/eej.2021.40427.

    Article  PubMed  PubMed Central  Google Scholar

  28. Faul F, Erdfelder E, Lang AG, Buchner A. G*Power 3: a flexible statistical power analysis program for the social, behavioral, and biomedical sciences. Behav Res Methods. 2007May;39(2):175–91. https://doiorg.publicaciones.saludcastillayleon.es/10.3758/bf03193146. PMID: 17695343.

    Article  PubMed  Google Scholar

  29. Martins JNR, Kishen A, Marques D, Nogueira Leal Silva EJ, Caramês J, Mata A, Versiani MA. Preferred reporting items for epidemiologic cross-sectional studies on root and root canal anatomy using cone-beam computed tomographic technology: a systematized assessment. J Endod. 2020;46(7):915–35. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.joen.2020.03.020. Epub 2020 May 6. PMID: 32387077.

    Article  PubMed  Google Scholar

  30. Zhang Q, Chen H, Fan B, Fan W, Gutmann JL. Root and root canal morphology in maxillary second molar with fused root from a native Chinese population. Journal of Endodontics. 2014;40(6):871–5. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.joen.2013.10.035.

    Article  PubMed  Google Scholar

  31. Wolf TG, Paqué F, Zeller M, Willershausen B, Briseño-Marroquín B. Root canal morphology and configuration of 118 mandibular first molars by means of micro-computed tomography: An ex vivo study. Journal of Endodontics. 2016;42(4):610–4. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.joen.2016.01.004.

    Article  PubMed  Google Scholar

  32. Torabinejad M, Walton RE. Endodontics: principles and practice (4th ed., pp. 259, 381; Chapters 15, 21). St. Louis: Elsevier Health Sciences/Saunders; 2009.

  33. Patel S, Dawood A, Whaites E, Pitt Ford T. New dimensions in endodontic imaging: Part 1. Conventional and alternative radiographic systems. Int Endod J. 2009;42(6):447–62. https://doiorg.publicaciones.saludcastillayleon.es/10.1111/j.1365-2591.2008.01530.x.

    Article  CAS  PubMed  Google Scholar

  34. Martins JNR, Marques D, Mata A, Caramês J. Root and root canal morphology of the permanent dentition in a Caucasian population: a cone-beam computed tomography study. Int Endod J. 2017;50(11):1013–26. https://doiorg.publicaciones.saludcastillayleon.es/10.1111/iej.12724.

    Article  CAS  PubMed  Google Scholar

  35. von Zuben M, Martins JNR, Berti L, Cassim I, Flynn D, Gonzalez JA, Gu Y, Kottoor J, Monroe A, Rosas Aguilar R, Marques MS, Ginjeira A. Worldwide Prevalence of Mandibular Second Molar C-Shaped Morphologies Evaluated by Cone-Beam Computed Tomography. Journal of Endodontics. 2017;43(9):1442–7. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.joen.2017.04.016.

    Article  Google Scholar

  36. Abella F, Teixidó LM, Patel S, Sosa F, Duran-Sindreu F, Roig M. Cone-beam Computed Tomography Analysis of the Root Canal Morphology of Maxillary First and Second Premolars in a Spanish Population. Journal of Endodontics. 2015;41(8):1241–7. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.joen.2015.03.026.

    Article  PubMed  Google Scholar

  37. Alfawaz H, Alqedairi A, Alkhayyal AK, Almobarak AA, Alhusain MF, Martins JNR. Prevalence of C-shaped canal system in mandibular first and second molars in a Saudi population assessed via cone beam computed tomography: a retrospective study. Clin Oral Invest. 2019;23(1):107–12. https://doiorg.publicaciones.saludcastillayleon.es/10.1007/s00784-018-2415-0.

    Article  Google Scholar

  38. Abarca J, Abarca J, Duran M, Parra D, Steinfort K, Zaror C, Monardes H. Root morphology of mandibular molars: A cone-beam computed tomography study. Folia Morphologica (Poland). 2020;79(2):327–32. https://doiorg.publicaciones.saludcastillayleon.es/10.5603/FM.a2019.0084.

    Article  CAS  Google Scholar

  39. Al Mheiri E, Chaudhry J, Abdo S, El Abed R, Khamis AH, Jamal M. Evaluation of root and canal morphology of maxillary permanent first molars in an Emirati population; A cone-beam computed tomography study. BMC Oral Health. 2020;20(1). https://doiorg.publicaciones.saludcastillayleon.es/10.1186/s12903-020-01269-2.

  40. Senan EM, Alhadainy HA, Madfa AA. Root and canal morphology of mandibular second Molars in a Yemeni population: a cone-beam computed tomography. Eur Endod J. 2021;6(1):72–81. https://doiorg.publicaciones.saludcastillayleon.es/10.14744/eej.2020.94695.

    Article  PubMed  PubMed Central  Google Scholar

  41. Magat G, Uzun S, Buchanan GD. Evaluation of Mesiobuccal Root and Root Canal Morphology of Maxillary First Molars in Turkish Population Using Two Classification Systems: A Cone Beam Computed Tomography Study. J Endod Restor Dent. 2023;1:8–14.

    Google Scholar

  42. Pertek Hatipoğlu F, Mağat G, Hatipoğlu Ö, Taha N, Alfirjani S, Abidin IZ, Lehmann AP, Alkhawas MAM, Buchanan GD, Kopbayeva M, Surendar S, Javed MQ, Madfa AA, Donnermeyer D, Krmek SJ, Bhatti UA, Palma PJ, Brochado Martins JF. Assessment of the Prevalence of Middle Mesial Canal in Mandibular First Molar: A Multinational Cross-sectional Study with Meta-analysis. J Endod. 2023May;49(5):549–58. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.joen.2023.02.012. Epub 2023 Mar 1 PMID: 36863567.

    Article  PubMed  Google Scholar

  43. Hatipoğlu FP, Mağat G, Hatipoğlu Ö, Al-Khatib H, Elatrash AS, Abidin IZ, Kulczyk T, Ahmed Mohamed Alkhawas MB, Buchanan GD, Kopbayeva M, Surendar S BDS, MDS, Javed MQ, Madfa AA, Bürklein S, Mimica S, Bhatti UA, Maratovna TI, Palma PJ, Brochado Martins JF. Assessment of the prevalence of radix entomolaris and distolingual canal in mandibular first molars in 15 countries: a multinational cross-sectional study with meta-analysis. J Endod. 2023;49(10):1308–1318. https://doiorg.publicaciones.saludcastillayleon.es/10.1016/j.joen.2023.06.011.

  44. Magat G, Hatipoğlu Ö, Köse T, Hatipoğlu FP. Root canal morphology of mandibular anterior permanent teeth in Turkish sub-population using two classification systems: a cone-beam computed tomography study. Odontology. 2024 Sep 16. https://doiorg.publicaciones.saludcastillayleon.es/10.1007/s10266-024-01000-5. Epub ahead of print. PMID: 39285116.

Download references

Acknowledgements

None.

Clinical trial number

Not applicable.

Funding

The authors declare no financial support or sponsorship.

Author information

Authors and Affiliations

  1. Department of Endodontics, Hamidiye Dental Faculty, Health Sciences University, Selimiye, Tıbbiye Cd, Üsküdar/İstanbul, 34668, Turkey

    Hüseyin Gürkan Güneç & Kemal Çağlar

  2. Department of Endodontics, School of Dental Medicine, Bahçeşehir University, İstanbul, Turkey

    İpek Öreroğlu

  3. Department of Dentomaxillofacial Radiology, Faculty of Dentistry, İstanbul Medipol University, İstanbul, Turkey

    Kader Cesur Aydin

Authors
  1. Hüseyin Gürkan Güneç
    View author publications

    You can also search for this author inPubMed Google Scholar

  2. İpek Öreroğlu
    View author publications

    You can also search for this author inPubMed Google Scholar

  3. Kemal Çağlar
    View author publications

    You can also search for this author inPubMed Google Scholar

  4. Kader Cesur Aydin
    View author publications

    You can also search for this author inPubMed Google Scholar

Contributions

H.G.G: Writing – Original draft, Conceptualisation, Methodology, Validation, Investigation, Project administration; İ.Ö: Writing – review and editing, Supervision, Visualisation, Resources, Formal analysis; K.Ç: Data curation, Funding acquisition, Investigation; K.C.A: Data curation, Investigation, Software, Formal analysis. All authors reviewed the manuscript.

Corresponding author

Correspondence to Hüseyin Gürkan Güneç.

Ethics declarations

Ethics approval and consent to participate

Non-Interventional Clinical Research Ethics Committee of Istanbul Medipol University approved the study and informed consent to participate was waived (E-10840098–202.3.02–2246). This study was conducted in accordance with the Declaration of Helsinki. Written informed consent was obtained from all participants and images were anonymised.

Consent for publication

NA.

Competing interests

The authors declare no competing interests.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International License, which permits any non-commercial use, sharing, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if you modified the licensed material. You do not have permission under this licence to share adapted material derived from this article or parts of it. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by-nc-nd/4.0/.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Güneç, H.G., Öreroğlu, İ., Çağlar, K. et al. Evaluation of mandibular and maxillary second molar root canal anatomy in a Turkish subpopulation using CBCT: comparison of Briseno-Marroquin and Vertucci classifications. BMC Med Imaging 25, 2 (2025). https://doiorg.publicaciones.saludcastillayleon.es/10.1186/s12880-024-01545-5

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doiorg.publicaciones.saludcastillayleon.es/10.1186/s12880-024-01545-5

Keywords

BMC Medical Imaging

ISSN: 1471-2342

Contact us
