Magnetic resonance diffusion-derived vessel density (DDVD) as a valuable tissue perfusion biomarker for isocitrate dehydrogenase genotyping in diffuse gliomas

BMC Medical Imaging volume 25, Article number: 79 (2025) Cite this article

Abstract

Background

Determining isocitrate dehydrogenase (IDH) mutation is crucial for glioma clinical management. MR diffusion-derived ‘vessel density’ (DDVD) offers non-invasive tissue perfusion evaluation within the tumor microenvironment. The study attempts to distinguish IDH genotypes of diffuse gliomas using DDVD in whole tumor parenchyma and its habitats.

Methods

This study enrolled 63 patients with diffuse gliomas (30 IDH-mutant and 33 IDH-wildtype) who underwent diffusion-weighted (DW) imaging at 3T. DDVDb0b10 was the signal difference between the b = 0 and b = 10 s/mm2 DW images. DDVDb0b10_b10b20 is DDVDb0b10 minus DDVDb10b20. nDDVD was DDVD divided by signal intensity at b = 0 s/mm2 DW image. Correlations between DDVD metrics/intravoxel incoherent motion (IVIM) imaging metrics (D and f) and IDH genotypes/Ki-67 status were studied.

Results

In tumor parenchyma, DDVDb0b10_b10b20 and nDDVDb0b10_b10b20 were lower, whereas D was higher in IDH-mutant gliomas [median (interquartile range): 12.76 (9.79–14.60); 15.14 (11.61–19.29); 1.31 (1.19–1.39)] compared to IDH-wildtype gliomas [14.48 (2.93–18.60), p = 0.008; 20.55 (15.89–24.02), p < 0.001; 1.16 (0.98–1.27), p = 0.003]. Habitat analysis improved the diagnostic performance for IDH genotyping, with the highest AUC of 0.823 found for the nDDVDb0b10_b10b20 derived from the high DDVDb0b10 value habitat. Diagnostic efficacy of the combined model of nDDVDb0b10_b10b20 with D was superior to that of combined model of f with D. The habitat model incorporating age, sex, and Karnofsky Performance Status further significantly enhanced the diagnostic efficacy, with an AUC reaching 0.979. Additionally, DDVD and f showed a positive correlation with Ki-67, while D exhibited a negative correlation with Ki-67 (all p < 0.05).

Conclusion

DDVD, as a novel biomarker of microvascular perfusion, effectively differentiates IDH genotypes in gliomas. The habitat analysis improves the diagnostic accuracy for IDH genotyping.

Peer Review reports

Background

Gliomas are among the most common and aggressive primary brain tumors, associated with poor prognosis. The molecular characterization has become critical in guiding treatment strategies and predicting outcomes for glioma patients. Based on the molecular characteristics, particularly isocitrate dehydrogenase (IDH) status, adult-type diffuse gliomas are currently categorized into glioblastoma (IDH-wildtype), astrocytoma (IDH-mutant), and oligodendroglioma (IDH-mutant and 1p/19q-codeleted) [1]. IDH mutations are associated with better prognosis and therapeutic responses compared to IDH-wildtype gliomas. Accurate and non-invasive methods for determining IDH status are highly valuable in clinical practice.

The apparent diffusion coefficient (ADC), derived from diffusion-weighted imaging (DWI), is a metric for assessing tissue cellularity and has been attempted to assess tumor grades and IDH genotypes of gliomas [2]. However, DWI has certain limitations due to the use of a monoexponential model. ADC values are influenced not only by molecular diffusion but also by perfusion effects and T2 effect which can lead to overestimation or underestimation of true diffusion [3, 4]. This is particularly relevant in gliomas, which are known for their heterogeneous vascularity. The intravoxel incoherent motion (IVIM) imaging yields metrics of the slow diffusion coefficient (Dslow or D), the fast perfusion-related diffusion coefficient (Dfast or D*) and perfusion fraction (PF or f). IVIM imaging has been attempted to assess tumor grading, IDH mutation analysis, cellular proliferation and predicting survival of glioma patients [3, 5,6,7]. However, the clinical application of IVIM still has great challenges. IVIM’s perfusion quantification is often impeded by noise sensitivity and the instability of data fitting process [8, 9]. Moreover, the perfusion and diffusion components in IVIM are noted to be mutually constrained [10, 11], and T2 shortening will lead to artificial elevation of f and Dfast measurement [12, 13].

Recently, magnetic resonance diffusion-derived ‘vessel density’ (DDVD), a functional parameter indicative of microvascular perfusion, has been proposed [14]. In vivo blood vessels show high signal when there is no motion probing gradient (b = 0 s/mm2) and low signal when even very low b-values (such as b = 1, b = 2) are applied. For spin-echo type EPI sequence, the second motion probing gradient after the 180-degree RF pulse could not fully re-focus the flowing spins in vessel and micro-vessels after being de-phased by the first motion probing gradient before the 180-degree RF pulse. The analysis of DDVD requires only two b-values, with a significantly shorter scanning time than contrast enhanced CT/MRI while without the need of a contrast agent injection [15,16,17,18,19,20,21]. Huang et al. [16] showed that DDVD analysis demonstrates liver parenchyma has an age-dependent decrease of micro-perfusion in healthy women. This agrees with the known physiological age-dependent reduction in liver blood flow. He et al. [17]. and Li et al. [18] reported that analysis of placenta DDVD allows excellent separation of normal and early pre-eclampsia pregnancies. Lu et al. [19]. reported that placenta regional DDVD is significantly higher in pregnant women with placenta accreta spectrum disorders than women with normal placenta. Hu et al. [20]. described that liver hemangiomas can be mostly differentiated from liver mass-forming lesions (hepatocellular carcinomas and focal nodular hyperplasia) solely based on DDVD pixel map. Chen et al. [21]. reported proof-of-concept case that DDVD pixelwise map assessments of brain ischemic area/volume are consistent with perfusion CT results, and a combination of DDVD pixelwise map and high b-value DW image identify the exitance and the size of a penumbra. As absolute MR signal intensity is influenced by various factors, including B0/B1 spatial inhomogeneity, coil loading, receiver gain, etc., the ratio of a lesion to its adjacent native tissue can be used to minimize these scaling factors. Li et al. [12] reported that ratio of HCC DDVD to background liver DDVD concur with earlier dynamic contrast enhanced CT results [22, 23]. Lu et al. [24] reported earlier clinical grades rectal carcinoma had a higher ratio of tumor DDVD to tumor-free rectal wall DDVD than those of the advanced clinical grades. This is consistent with the biology of rectal carcinoma [25, 26]. Recently, Wang et al. [27]. described that endometrial carcinoma with Ki-67 high-proliferation or aggressive histological type had higher DDVD value than those with Ki-67 low-proliferation or non-aggressive histological type. ROC curve analysis shows AUC of 0.873 for distinguishing between Ki-67 low- and high-expression, and AUC of 0.771 for distinguishing between non- aggressive and aggressive histological types. DDVD also readily provides in vivo perfusion information for parotid gland tumors [21, 28].

Although research on DDVD has shown promising applications in abdominal organs and in brain ischemic stroke, its potential in brain gliomas has not been explored. Given that more angiogenesis is found in IDH-wildtype gliomas, particularly glioblastomas, compared to IDH-mutant gliomas [29, 30], we hypothesize that DDVD can serve as a useful biomarker for IDH genotyping. The term “tumor habitat” denotes the distinctive spatial microenvironment that arises from the interaction between tumor cells and their surroundings as they adapt to various survival pressures [31]. Intra-tumoral spatial heterogeneity is a well-established phenomenon in gliomas, particularly in glioblastoma at both genomic and transcriptomic levels [32, 33]. Recently, habitat analysis employed various imaging modalities to segment the tumor into distinct spatial compartments [34]. By integrating habitat analysis with DDVD, it may be possible to achieve more precise and robust differentiation of IDH genotypes.

Methods

Patients and clinical information

Between March 2019 and July 2023, this prospective study enrolled 106 glioma suspects. Ethical approval was granted by the local Ethics Committee, and all participants provided informed consent. Exclusion criteria included incomplete or poor-quality imaging (e.g., significant artifacts or head motion), absence of surgery or biopsy, non-glioma histological diagnoses, inadequate tissue for genetic analysis, and prior glioma therapy. The final study cohort comprised 63 patients (33 males, 30 females) (Fig. 1). Demographic and clinical data such as sex, age, and recurrence rates were documented. Clinical evaluations included the assessment of Karnofsky Performance Status (KPS).

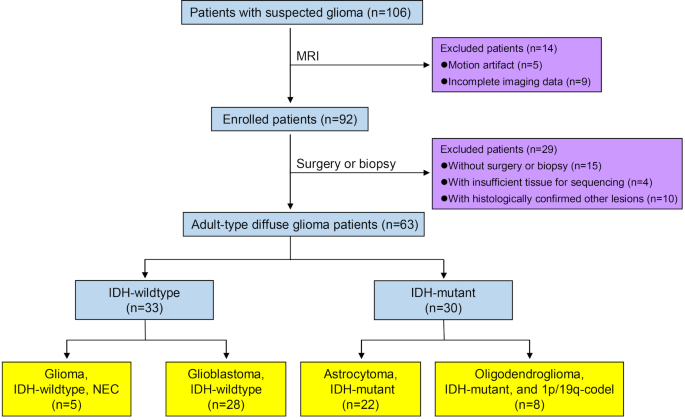

Fig. 1
figure 1

Screening process for patients with glioma. IDH = isocitrate dehydrogenase, 1p/19q-codel = synchronous deletion of the short arm of chromosome 1 and long arm of chromosome 19, NEC = not elsewhere classified

Full size image

MRI data acquisition

Structural MRI and multi-b-value DWI were performed on a 3.0-T system (MAGNETOM Prisma, Siemens Healthcare) utilizing a 64-channel head coil. The structural MRI included pre-contrast sagittal T1-weighted magnetization prepared rapid gradient echo sequence (T1-MPRAGE), axial T2-weighted (T2W) fast spin-echo (FSE) images, axial fluid-attenuated inversion recovery (FLAIR) T2W images, gradient echo (GRE) sequence, and post-contrast FLAIR T1W images in axial, sagittal, and coronal planes. For DWI, a single-shot echo planer imaging (SE-EPI) sequence was applied with parameters: repetition time, 2,000 ms, echo time, 69 ms; slice thickness, 5 mm; gap, 1 mm; field of view, 23 cm × 23 cm; acquisition matrix, 128 × 128; GRAPPA, 2; slice acceleration factor, 2; and pixel bandwidth, 2055 Hz/pixel. The acquisition encompassed 16 b-values (0, 10, 20, 40, 60, 80, 100, 120, 140, 160, 180, 200, 300, 500, 750 and 1,000 s/mm2) with a single number of excitation (NEX), totaling a scan duration of 2 min 09 s.

DWI processing and analysis

All diffusion-weighted images were subjected to denoising and motion correction using QSIprep (https://github.com/PennLINC/qsiprep). DDVD pixelwise maps were computed using the following Eqs [20, 28].:

$$DDV{D_{b0b10}} = {{{S_{b0}}} \mathord{\left/{\vphantom {{{S_{b0}}} {RO{I_{area\_b0}}}}} \right.\kern-\nulldelimiterspace} {RO{I_{area\_b0}}}} - {{Sb10} \mathord{\left/{\vphantom {{Sb10} {RO{I_{area\_b10}}}}} \right.\kern-\nulldelimiterspace} {RO{I_{area\_b10}}}}\,\,\,\,\left( {{{au} \mathord{\left/{\vphantom {{au} {pixel}}} \right.\kern-\nulldelimiterspace} {pixel}}} \right)$$
(1)
$$\displaylines{ DDV{D_{b0b10\_b10b20}} = \left( {{{{S_{b0}}} \mathord{\left/{\vphantom {{{S_{b0}}} {RO{I_{area\_b0}}}}} \right.\kern-\nulldelimiterspace} {RO{I_{area\_b0}}}} - {{{S_{b10}}} \mathord{\left/{\vphantom {{{S_{b10}}} {RO{I_{area\_b10}}}}} \right.\kern-\nulldelimiterspace} {RO{I_{area\_b10}}}}} \right) - \cr \left( {{{{S_{b10}}} \mathord{\left/{\vphantom {{{S_{b10}}} {RO{I_{area\_b10}}}}} \right.\kern-\nulldelimiterspace} {RO{I_{area\_b10}}}} - {{{S_{b20}}} \mathord{\left/{\vphantom {{{S_{b20}}} {RO{I_{area\_b20}}}}} \right.\kern-\nulldelimiterspace} {RO{I_{area\_b20}}}}} \right)\,\,\,\,\left( {{{au} \mathord{\left/{\vphantom {{au} {pixel}}} \right.\kern-\nulldelimiterspace} {pixel}}} \right) \cr} $$
(2)
$$nDDVD = {{DDVD} \mathord{\left/{\vphantom {{DDVD} {\left( {{{{S_{b0}}} \mathord{\left/{\vphantom {{{S_{b0}}} {RO{I_{area\_b0}}}}} \right.\kern-\nulldelimiterspace} {RO{I_{area\_b0}}}}} \right)}}} \right.\kern-\nulldelimiterspace} {\left( {{{{S_{b0}}} \mathord{\left/{\vphantom {{{S_{b0}}} {RO{I_{area\_b0}}}}} \right.\kern-\nulldelimiterspace} {RO{I_{area\_b0}}}}} \right)}}\,\,\,\,\left( \% \right)$$
(3)

Where Sb0, Sb10 and Sb20 refers to the sum of signals within the selected region of interest (ROI) on b = 0, 10 and 20 s/mm2 images, respectively. ROIarea_b0, ROIarea_b10, and ROIarea_b20 refer to the ROI area (unit in pixel) on b = 0, 10 and 20 s/mm2 images. DDVDb0b10 denotes the average signal intensity difference between b = 0 s/mm2 and b = 10 s/mm2, per unit area or per pixel. DDVDb0b10_b10b20 was to address the issue of signal decay associated with diffusion. By subtracting the b10b20 element from b0b10, DDVDb0b10_b10b20 reduces the diffusion component inherent in DDVDb0b10, leading to a more precise interpretation of the tissue micro-perfusion [28]. Furthermore, nDDVD represents the normalized signal intensity difference adjusted by the mean signal intensity at b = 0 s/mm2 [14].

IVIM parameter maps including D and f were also computed by MITK Diffusion (https://github.com/MIC-DKFZ/MITK-Diffusion) using a segmented fitting approach with threshold b-value of 170 s/mm2 according to the biexponential IVIM model as follows:

$${{{S_b}} \mathord{\left/{\vphantom {{{S_b}} {{S_{b0}}}}} \right.\kern-\nulldelimiterspace} {{S_{b0}}}} = f.exp\left( { - b{D^*}} \right) + \left( {1 - f} \right).\exp \left( { - bD} \right)$$
(4)

where Sb0 and Sb are the diffusion-weighted signal intensities for b = 0 s/mm2 and a non-zero b value, respectively.

ROI placement and habitat analysis

Structural MR images were registered to the b = 0 images using SPM12 (Wellcome Centre for Human Neuroimaging; http://www.fil.ion.ucl.ac.uk/spm/). ROIs over the whole tumor parenchyma (TP) were delineated on all tumor slices using ImageJ (version 1.49o, NIH; https://imagej.nih.gov/ij/) by two neuroradiologists (R.F.J. and Y.F.S.) who were blinded to histological results. The enhanced TP was outlined using transverse gadolinium-enhanced T1-weighted images when clear enhancement region was present, while for non-enhanced tumors, the TP was identified on transverse FLAIR T2W images or T2W images. Identifiable necrotic areas, cysts, edema, and calcifications were excluded from the ROIs. Figure 2 illustrates ROI delineation in sample cases for each tumor type.

Fig. 2
figure 2

Examples of ROI delineation and representative cases of gliomas. (A) A 73-year-old female patient with glioblastoma, IDH-wildtype in the left frontal lobe showing high DDVDb0b10_b10b20 value, high f value and low D value; (B) a 53-year-old female patient with astrocytoma, IDH-mutant (grade 2) in the left frontal lobe showing low DDVDb0b10 value, low f value and high D value; and (C) a 31-year-old male patient with astrocytoma, IDH-mutant (grade 4) in the left temporal lobe showing low DDVDb0b10 value, low f value and moderate (D) value. ROI = region of interest, IDH = isocitrate dehydrogenase, DDVD = diffusion-derived vessel density, IVIM = intravoxel incoherent motion

Full size image

Habitat analysis was conducted on the whole TP ROI using nnFAE (an in-house Python-based software). DDVDb0b10_b10b20, DDVDb0b10, nDDVDb0b10_b10b20, nDDVDb0b10, D and f maps were respectively selected as the primary quantitative parameters for habitat analysis. We applied the Otsu threshold method to classify the voxels of the whole TP into high- and low-value regions across the entire cohort for each parameter map. The threshold was iteratively set to minimize intra-class and maximize inter-class variance. The resulting subregions from each parameter map were amalgamated to yield two distinct final subregions, known as habitats: low value region (mask1) and high value region (mask2). Subsequently, the average values of the selected parameters in the whole TP and the identified habitats were computed for further evaluation.

Molecular and genetic detection of adult-type diffuse glioma

Molecular profiling was conducted via multiplexed polymerase chain reaction (PCR) coupled with next-generation sequencing to elucidate key genetic characteristics. Targeted detection of single-nucleotide variants (SNVs) identified mutations at IDH1R132, IDH2R172, TERT C228T, and TERT C250T. Copy number variation (CNV) analysis pinpointed 1p/19q co-deletion, chromosome 10 loss, and chromosome 7 gain. Quantitative real-time PCR evaluated EGFRvIII amplification. The presence of an IDH1 R132 or IDH2 R172 mutation classified the glioma as IDH-mutant; absence indicated an IDH-wildtype diagnosis. Patients were grouped according to IDH genotypes (IDH-wildtype or IDH-mutant), and were subsequently placed in three subtypes according to WHO CNS5 subtype criteria [1]. The Envision technique was used for immunohistochemical staining. The Ki-67 labeling index (LI) was defined as the percentage of nuclear staining-positive cells with any intensity in the high-density staining area in the total cells.

Statistical analysis

Statistical analysis was executed using SPSS (version 27, IBM Corp.). Intraclass correlation coefficient (ICC) verified inter-rater reliability. Group comparisons were conducted utilizing the Kruskal-Wallis test for continuous variables (age, KPS, Ki-67 LI) and Fisher’s exact test for categorical outcomes (sex and recurrence rate). Mann-Whitney U tests were performed to compare differences in each metric between IDH genotypes. Binary Logistic Regression synthesized features into predictive equations for IDH genotype identification. ROC curve and AUC were used to assess diagnostic performance. AUCs were compared using the DeLong test. Spearman’s correlation examined Ki-67 LI correlations with metrics. The p values were adjusted for multiple comparisons using the Benjamini-Hochberg method.

Results

Participant characteristics

Patient demographics for the 63 subjects are detailed in Table 1. Of the 33 with IDH-wildtype glioma, 28 were glioblastoma and 5 were IDH-wildtype glioma, not elsewhere classified (NEC). The 30 with IDH-mutant glioma comprised 22 astrocytomas and 8 oligodendrogliomas. There were no significant differences in sex and recurrence rate across the groups (p = 0.469 and 0.845). However, age, KPS, and Ki-67 LI varied significantly (p < 0.001, p = 0.038, and p = 0.002), with patients of IDH-wildtype glioma exhibiting older age, reduced KPS, and elevated Ki-67 LI.

Table 1 Participant demographic, clinical, and pathological characteristics
Full size table

Comparisons of DDVD and IVIM values among different tumor groups

The inter-observer reproducibility of measurements in 45 randomly selected patients is described in Supplementary Table S1 (for whole TP) and Supplementary Table S2 (for habitats analysis). The ICCs ranged between 0.813 and 0.958 for the whole TP and between 0.578 and 0.980 for the tumor habitats, indicating good to excellent reproducibility between radiologists. The measurement data from R.F.J were used for subsequent statistical analysis. Comparisons of DDVD and IVIM values between IDH genotypes and between tumor subtypes are listed in Table 2 and visualized in Fig. 3. Compared with IDH-mutant gliomas, DDVDb0b10_b10b20 and nDDVDb0b10_b10b20 of the whole TP were significantly higher in IDH-wildtype gliomas (p = 0.008 and < 0.001, respectively), whereas D was significantly lower (p = 0.003). In contrast, no significant differences were found for the DDVDb0b10, nDDVDb0b10 and f between two groups (p = 0.296, 0.080 and 0.080, respectively). Compared with astrocytoma, DDVDb0b10_b10b20 and nDDVDb0b10_b10b20 were significantly higher (p = 0.014 and 0.006), whereas D was significantly lower in glioblastoma (p = 0.014). In contrast, no significant differences were found for the other comparisons among different tumor subtypes (p > 0.05 for all).

Table 2 Comparisons of DDVD and IVIM parameter values of whole TP between glioma groups
Full size table
Fig. 3
figure 3

Box and whisker graphs for separating IDH genotypes and tumor subtypes. Box and whisker graphs show distributions of DDVDb0b10_b10b20 (A), DDVDb0b10 (B), nDDVDb0b10_b10b20 (C), nDDVDb0b10 (D), IVIM_D (E), IVIM_f (F) values of the whole TP that could be used to identify the IDH genotype and tumor subtype of adult-type diffuse gliomas. * p < 0.05 and ** p < 0.01. TP = tumor parenchyma, IDH = isocitrate dehydrogenase, DDVD = diffusion-derived vessel density, IVIM = intravoxel incoherent motion

Full size image

Diagnostic performances of DDVD and IVIM values for IDH genotyping

The AUC, sensitivity and specificity of the DDVD and IVIM metric values when separating IDH genotypes are listed in Table 3. The ROC curves are depicted in Fig. 4. The AUCs of the metric values derived from the whole TP ranged from 0.577 to 0.763. The nDDVDb0b10_b10b20 value demonstrated the best diagnostic performance in distinguishing IDH-mutant gliomas from IDH-wildtype gliomas; with an AUC and 95% confidence interval (CI) of 0.763 (0.644–0.881), a sensitivity of 90.00%, and a specificity of 57.58%. The D and DDVDb0b10_b10b20 values also showed moderate diagnostic performance, with AUCs of 0.746 and 0.709, respectively.

Table 3 Diagnostic performance of DDVD and IVIM parameter values for IDH genotyping of gliomas
Full size table
Fig. 4
figure 4

ROC curves for DDVD and IVIM parameters and models when separating IDH genotypes of gliomas. ROC curves for DDVDb0b10 (A), DDVDb0b10_b10b20 (B), IVIM_D (C), nDDVDb0b10 (D), nDDVDb0b10_b10b20 (E), IVIM_f (F) values of the whole TP and their best habitats, and models reported in Table 4 (G, H, I) when distinguishing IDH-wildtype gliomas from IDH-mutant gliomas. AUC = area under the curve, TP = tumor parenchyma, IDH = isocitrate dehydrogenase, DDVD = diffusion-derived vessel density, IVIM = intravoxel incoherent motion

Full size image
Table 4 Modeling and evaluating diagnostic performance of models for IDH genotyping of gliomas
Full size table

The segmentation thresholds of habitat analysis using Otsu threshold method were 15.095 for DDVDb0b10_b10b20 map, 25.529 for DDVDb0b10 map, 20.308 × 10− 3 for nDDVDb0b10_b10b20 map, 22.385 × 10− 3 for nDDVDb0b10 map, 1.377 × 10− 3 for D map and 0.068 for f map. After habitat analysis, the diagnostic performance of each metric value for IDH genotyping showed varying degrees of improvement. The most notable improvements were observed in the metric values derived from the high-value habitat segmented based on the DDVDb0b10 map (DDVDb0b10, mask2) and the low-value habitat segmented based on the D map (D, mask1). The best AUCs of the metric values derived from habitats ranged from 0.731 to 0.823, as shown in Table 3.

Logistic regression models in identifying IDH genotypes

Binary logistic regression modeling further enhanced the diagnostic performance for IDH genotyping, as shown in Table 4. For whole TP features, the combined model of nDDVDb0b10_b10b20 and D (model1) achieved an AUC (95% CI) of 0.812 (0.708–0.917), higher than the combined model of f and D (model2), which had an AUC (95% CI) of 0.774 (0.656–0.892). Similarly, for habitat features, the combined model of nDDVDb0b10_b10b20 and D (model3) achieved an AUC (95% CI) of 0.866 (0.777–0.954), higher than the combined model of f and D (model4), with an AUC (95% CI) of 0.828 (0.721–0.936). Additionally, models based on habitat features also showed higher diagnostic AUCs compared to those based on whole TP features.

Furthermore, combined model of clinical indicators (age, sex, and KPS) and imaging indicators (habitat-based nDDVDb0b10_b10b20 and D) (model5) further significantly improved the diagnostic efficacy for IDH genotyping, achieving an AUC (95% CI) of 0.979 (0.953-1.000), with a sensitivity of 96.67% and specificity of 90.91%.

In order to better guide the image-based diagnosis, cut-off values of representative metrics and models under different diagnostic specificity for identifying IDH-wildtype gliomas were reported in Table 5.

Table 5 Cut-off values of representative metrics and models under different diagnostic specificity for identifying IDH-wildtype gliomas
Full size table

Comparisons of AUCs for IDH genotyping

Assessments using the DeLong test showed that the improvement of AUC after habitat analysis was significant for nDDVDb0b10 and f (p = 0.007 and 0.009, respectively), but not significant for DDVDb0b10_b10b20, DDVDb0b10, nDDVDb0b10_b10b20 and D (p = 0.219, 0.054, 0.218 and 0.813, respectively). Compared to the best AUC of 0.763 from the whole TP, the best AUC of 0.823 from the tumor habitat showed a slight improvement (p = 0.218), the AUC of the model3 improved significantly (p = 0.039), and the model5 further significantly enhanced the AUC for IDH genotyping (p < 0.001). In addition, compared to the AUCs of combined models of nDDVDb0b10_b10b20 and D (model1 and model3), the AUCs of combined models of f and D (model2 and model4) also improved slightly (p = 0.240 and 0.375).

Correlations of Ki-67 LI with DDVD and IVIM values

The Ki-67 LI was significantly positively correlated with DDVDb0b10_b10b20 (rho = 0.437, p < 0.001), DDVDb0b10 (rho = 0.369, p = 0.005), nDDVDb0b10_b10b20 (rho = 0.397, p = 0.002), nDDVDb0b10 (rho = 0.332, p = 0.010), and f (rho = 0.456, p < 0.001). Conversely, Ki-67 LI was significantly negatively correlated with D (rho = -0.262, p = 0.038). After habitat analysis, the correlation coefficients improved from − 0.262 ∼ 0.456 based on whole TP features to -0.551 ∼ 0.516 based on habitat features, as shown in Table 6.

Table 6 Correlation of Ki-67 LI with DDVD and IVIM parameters in whole TP and habitats
Full size table

Discussion

The current study is the first to apply DDVD in the investigation of brain gliomas. The current study showed that the DDVD values were significantly higher in IDH wild-type gliomas compared to IDH mutant gliomas, suggesting increased tissue micro-perfusion in the TP of IDH wild-type gliomas. Our findings are basically consistent with previous perfusion studies on gliomas [35, 36], in which significantly higher relative cerebral blood volume (rCBV) value was similarly found in IDH wild-type gliomas. According to the 2021 WHO classification of central nervous system tumors, glioblastomas constitute the majority of IDH wild-type gliomas. Pathologically, glioblastomas are characterized by two typical characteristics: microvascular proliferation and palisading necrosis [35, 37]. Therefore, the higher micro-perfusion observed in the TP of IDH wild-type gliomas can be attributed to the frequent occurrence of microvascular proliferation, which well explains the elevated DDVD values in these tumors.

The current study demonstrated that the Ki-67 LI was elevated in IDH-wildtype gliomas or glioblastomas and was positively correlated with DDVD. This suggests that an increased Ki-67 LI is linked to enhanced micro-perfusion in gliomas. The Ki-67 LI serves as an indicator of proliferating cells within a tumor, and a higher Ki-67 LI indicates greater proliferation [38]. It is a well-established biological principle that during periods of heightened cellular proliferation, there is a concomitant requirement for microvascular proliferation to ensure the supply of nutrients essential for cell growth. This concept is corroborated that a significantly higher microvascular density in glioblastomas with a Ki-67 LI exceeding 20% [39]. This explains why a higher Ki-67 LI was correlated with higher DDVD values. Notably, our recent study with endometrial carcinoma also showed Ki-67 high-proliferation or aggressive histological type had higher DDVD value than those with Ki-67 low-proliferation or non-aggressive histological type [27].

It is noteworthy that the present study observed a relatively better performance of DDVDb0b10_b10b20 compared to DDVDb0b10 in both IDH genotyping and Ki-67 correlation analysis. The improved performance of DDVDb0b10_b10b20 may be attributed to its design, which subtracts the b10b20 element from b0b10, thereby reducing the diffusion component present in DDVDb0b10 [15, 28]. This study also applied habitat analysis. Tumor cells have different genetic traits in different areas of the tumor. This means a tumor is like a mix of different environments, each with its own conditions and cell behaviors. These differences cause tumor cells to interact with their surroundings, leading to genetic changes in the tumor [31]. A habitat imaging method can use MR images to create a set of phenotypic heterogeneity maps showing these differences, which can help in identifying representative subregions of tumor [40, 41]. In the current study, the diagnostic efficiency was significantly improved for DDVD, D, and f values in classifying IDH genotypes through habitat analysis and the correlation of these parameter values with Ki-67 LI was also enhanced. This improvement is likely because habitat analysis effectively identifies representative subregions of gliomas. Of note, the most notable improvements were observed in the metric values derived from the habitats with higher DDVD value and lower D value, which represent subregions with higher malignancy in gliomas.

In this study, the modeling analysis revealed that the diagnostic efficiency of the combined model using DDVD and D was superior to that using f and D for IDH genotyping, suggesting that DDVD might provide a more accurate assessment of micro-perfusion compared to IVIM_f of IVIM. As expected, predictive models based on habitat features demonstrated better diagnostic performance than those based on the whole TP features. When clinical indicators (age, sex, and KPS) were further integrated into a model, the diagnostic efficacy for IDH genotyping was further improved.

There were some limitations in this study. First, it used a single-center study with a relatively small sample size, especially for patients with oligodendroglioma. Second, DWI scan parameters can be further optimized. The second b-value of 10 s/mm2 was relatively high for DDVD analysis. Our earlier study showed that DDVDb0b2 is better in assessing HCC than DDVDb0b10 [12, 18], which is consistent with the initial definition of DDVD [14]. The NEX of DWI in this study was only 1. Our recent experience shows increasing NEX can improve DDVD measure stability, and since the DDVD protocol is very fast, higher NEX will be practically feasible. Moreover, tumor habitats defined based on diffusion MRI using otsu method clustering into higher and lower value habitats could not be confirmed pathologically. However, such a pathological correlation would be challenging to achieve. Future studies with more optimized DWI scan parameters and with larger sample sizes for various types of gliomas are highly desirable. Another limitation is that follow-up imaging of the patients was unavailable to us, thus we could not assess the correlation between DDVD measures with the glioma recurrence rate.

In conclusion, DDVD, an in vivo measure of vessel micro-perfusion, can help to distinguish between IDH genotypes in diffuse gliomas. Habitat analysis enhances the performance of DDVD for IDH genotyping and Ki-67 evaluation. These findings suggest that DDVD can serve as a novel biomarker for IDH genotyping in adult-type diffuse gliomas, aiding in personalized treatment strategies and probably also in post-treatment follow-ups.

Data availability

The datasets used and analysed during the current study are available from the corresponding author upon reasonable request.

Abbreviations

DWI:

Diffusion-weighted imaging

IDH:

Isocitrate dehydrogenase

TP:

Tumor parenchyma

DDVD:

Diffusion-derived vessel density

IVIM:

Intravoxel incoherent motion

AUC:

Area under curve

ROC:

Receiver operating characteristic

ROI:

Region of interest

WHO:

World Health Organization

CNS:

Central nervous system

TERT:

Telomerase reverse transcriptase

EGFR:

Epidermal growth factor receptor

NEC:

Not elsewhere classified

KPS:

Karnofsky performance status

T1-mprage:

T1-weighted magnetization prepared rapid gradient echo sequence

T2WI:

T2-weighted imaging

FSE:

Fast spin-echo

FLAIR:

Fluid attenuated inversion recovery

Ki-67 LI:

Ki-67 labeling index

PCR:

Polymerase chain reaction

ICC:

Intra-class correlation coefficient
